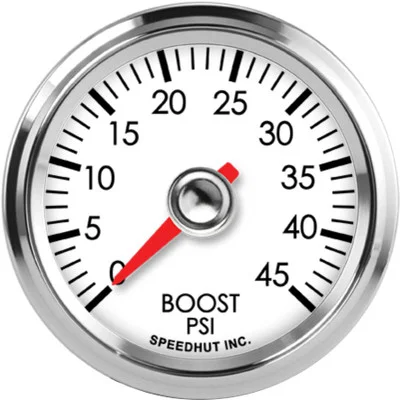

Speedhut 2-1/16″ 0-45 PSI Boost Gauge (L2-B5-LEG)

Description

Speedhut 2-1/16″ 0-45 PSI Boost Gauge (L2-B5-LEG) is a precise instrument designed to monitor your vehicle’s intake manifold pressure. This gauge allows you to track both positive pressure (boost) and negative pressure (vacuum), providing crucial information about your engine’s performance. Featuring a high-quality 3-wire military-grade transducer, this gauge delivers accurate and reliable readings. Its 2 1/16 inch size makes it a versatile fit for various gauge pods and mounting locations.

KEY FEATURES AND BENEFITS:

• Provides accurate readings of both boost (0-45 PSI) and vacuum.
• Utilizes a high-performance 3-wire military-grade pressure transducer for reliable data.
• The 2 1/16 inch size (52mm) is a standard dimension for easy integration into most vehicles.
• Includes all necessary wiring harnesses for straightforward installation.
• Comes with a 100 PSI pressure sensor, offering a safety margin and ensuring accuracy within the gauge’s range.
• LED-lit, enhancing visibility under various lighting conditions.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-45 PSI
• Size: 2 1/16 inch (52mm diameter)
• Hole Size: 2.062 inches (52mm)
• Standard or Metric: Standard (PSI)
• Warning Light: No
• Included:
  • Pressure Sensor – 100 PSI
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)

HOW TO USE:

1. Mount the Gauge: Choose a suitable location in your vehicle and drill a 2.062-inch diameter hole. Secure the gauge using the provided mounting hardware.
2. Install the Pressure Sensor: Locate a suitable point on your intake manifold or a relevant boost/vacuum source to install the included 100 PSI pressure sensor. Ensure it is securely mounted.
3. Connect the Pressure Sensor Wiring: Use the provided Pressure Gauge Wiring Harness (3-Wire Cable) to connect the pressure sensor to the back of the gauge. Follow the wiring diagram provided with the product.
4. Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the designated terminals on the back of the gauge. Connect the power wire to a switched 12V source and the ground wire to a suitable ground point. The lighting wire can be connected to your vehicle’s lighting circuit if desired, for illumination when headlights are on.
5. Verify Connections: Double-check all wiring connections to ensure they are secure and correct before powering on your vehicle.
6. Test the Gauge: Start your vehicle and observe the gauge readings. It should display the current vacuum level at idle and respond accordingly to changes in engine load, showing boost under acceleration.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-45 PSI BOOST GAUGE (L2-B5-LEG):

• Early Detection of Issues: By observing abnormal boost or vacuum readings, you can identify potential engine problems such as leaks, faulty valves, or turbocharger issues before they become severe.
• Optimal Engine Tuning: For performance enthusiasts, accurate boost readings are crucial for tuning the engine for optimal power and efficiency.
• Ensuring Engine Health: Consistent monitoring helps ensure your engine is operating within its intended parameters, contributing to its longevity.
• Enhanced Driving Experience: Having real-time feedback on your engine’s performance can provide a more engaging and informative driving experience.

FEATURES:

• Precisely measures pressure in the range of 0 to 45 PSI and vacuum.
• Employs a robust 3-wire transducer built to military-grade specifications for dependable accuracy.
• Compact 2 1/16 inch (52mm) size allows for flexible mounting options.
• Clear LED illumination provides excellent visibility day and night.
• Comes complete with a durable 100 PSI pressure sensing unit.
• Includes dedicated wiring harnesses for both the pressure sensor and gauge power/lighting.
• Designed for straightforward installation with included hardware and wiring.
