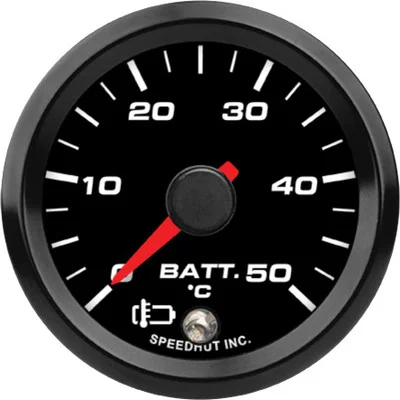

Speedhut 2-1/16″ 0-50C EV Battery Temp Gauge w/ Warning (FAE2-T2-EV)

Description

The Speedhut 2-1/16″ 0-50C EV Battery Temp Gauge w/ Warning (FAE2-T2-EV) is an essential instrument designed to provide critical insights into the thermal management of your EV’s battery system. Precision engineered to deliver real-time monitoring of the battery temperature, this high-tech tool allows you to optimize the thermal conditions for maximum battery performance and longevity. Operating at a 500K baud rate, its seamless integration into your electric vehicle’s CAN-bus system makes it a vital component for helping you maintain the optimal battery temperature range. Specifically compatible with AEM systems, this gauge ensures accurate and dependable temperature readings, contributing to the overall health and efficiency of your electric vehicle.

KEY FEATURES AND BENEFITS:

• Temperature Monitoring Range: Accurately displays battery temperatures from 0 to 50°C for effective thermal management.
• Warning System: Integrated warning light alerts the driver when battery temperature exceeds 40°C, helping prevent overheating.
• CAN-Bus Integration: Communicates directly with your EV’s AEM system at a 500K baud rate for real-time and reliable data.
• Compact Size: Standard 2-1/16 inch (52mm) gauge size fits most dashboard and pod configurations.
• Enhanced Battery Lifespan: Helps maintain ideal battery temperature, contributing to prolonged performance and health.

SPECIFICATIONS:

• Gauge Type: Battery Temp
• Signal Type: CAN-Bus (500K baud rate)
• Range: 0-50°C
• Size: 2-1/16 inch
• Standard or Metric: Metric
• Hole Size: 2.10 inches (54mm)
• Warning Light Activation: Above 40°C
• Included:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • EV CAN Harness
  • EV CAN Jumper Harness

HOW TO USE:

1. Mount the Gauge: Install the 2-1/16 inch gauge into a 2.10 inch (54mm) diameter opening in your vehicle’s dashboard or instrument panel. Secure it using the appropriate mounting hardware.
2. Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the gauge, ensuring proper connections for power and illumination.
3. Connect to the CAN-Bus: Utilize the EV CAN Harness and EV CAN Jumper Harness to establish a connection between the gauge and your vehicle’s CAN-bus system. Ensure the connection is secure for reliable data transmission at the 500K baud rate.
4. Monitor Temperature: Once installed and connected, the gauge will display the real-time temperature of your EV battery within the 0-50°C range.
5. Observe Warning Light: Pay attention to the integrated warning light. If the battery temperature exceeds 40°C, the light will illuminate, indicating a need to assess the battery’s thermal condition.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 0-50C EV BATTERY TEMP GAUGE W/ WARNING (FAE2-T2-EV):

• Enables precise monitoring of battery temperature to prevent overheating and thermal degradation.
• Early warning system supports preventative action, helping extend battery life.
• Improves battery efficiency and performance through optimal thermal regulation.
• Seamless CAN-bus integration offers accurate data and a simplified setup process.
• Equips EV owners with the tools to maintain safe and efficient operation of the battery system.

FEATURES:

• Provides live temperature readings of your EV battery.
• Clearly displays temperature in Celsius (0-50°C range).
• Integrated visual alert system for high temperatures (above 40°C).
• Communicates seamlessly with the vehicle’s data network via CAN-Bus protocol.
• Designed in a compact 2-1/16 inch (52mm) size for versatile mounting options.
• Requires a specific 2.10 inch (54mm) cutout for installation.
• Specifically engineered for compatibility with AEM electric vehicle systems.
• Includes necessary wiring for power, lighting, and CAN-bus connection.
