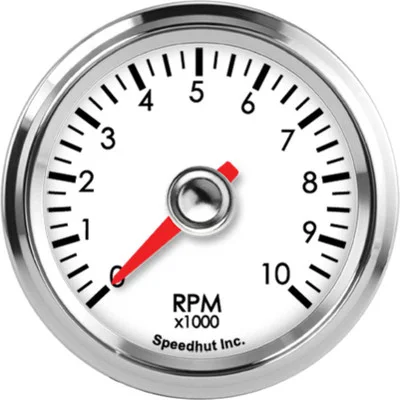

Speedhut 2-1/16″ 10K RPM Tachometer (L2-TC4-LEG)

Description

The Speedhut 2-1/16″ 10K RPM Tachometer (L2-TC4-LEG) provides accurate and immediate readings of your engine’s revolutions per minute. Designed for vehicles using standard spark plug ignition systems, this tachometer is compatible with engines ranging from 1 to 12 cylinders. Its 2 1/16 inch size fits easily into common gauge mounting locations, with a required hole size of 2.062 inches (52mm). The included power and tachometer harnesses ensure simplified wiring, while the gauge mounting ring offers secure and hassle-free installation. Though it lacks an internal shift light, the tachometer effectively fulfills its primary function of delivering precise RPM data.

KEY FEATURES AND BENEFITS:

• Provides precise pressure readings from 0 to 10,000 RPM.
• Designed for vehicles with standard spark plug ignition systems.
• Compatible with engines ranging from 1 to 12 cylinders.
• Compact 2 1/16 inch (52mm) size for easy installation.
• Includes gauge mounting ring for secure placement.
• Supplied with 3 ft Power & Lighting Harness and 8 ft Tachometer Harness.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Units: Standard (RPM)
• Range: 0 – 10,000 RPM
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Tachometer Signal Type: Standard spark plug ignition systems
• Compatibility: 1 to 12 cylinder engines
• Internal Shift Light: No
• Gauge Mounting Ring: Included
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2 1/16 inch (52mm) diameter opening and secure the tachometer using the mounting ring.
2. Connect the Power Harness: Attach the 3 ft Power & Lighting Harness to a 12V switched power source, ground, and optionally to the lighting circuit.
3. Connect the Tachometer Signal Harness: Connect the 8 ft Tachometer Harness to the tach signal output (usually the negative side of the ignition coil or designated tach output).
4. Verify Connections: Ensure all wiring is secure and matches the vehicle’s wiring diagram.
5. Test the Gauge: Start the engine to verify the tachometer indicates RPM and that the illumination works properly.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 10K RPM TACHOMETER (L2-TC4-LEG):

• Provides accurate monitoring of engine speed to prevent over-revving and potential damage.
• Supports better gear-shifting decisions for performance and fuel efficiency.
• Clear, easy-to-read display for quick RPM monitoring during operation.
• Versatile compatibility with engines having 1 to 12 cylinders using standard ignition systems.
• Simplified installation with included power and signal harnesses.

FEATURES:

• Precise RPM Monitoring: Delivers accurate readings of engine revolutions per minute.
• Standard Ignition Compatibility: Works with standard spark plug ignition systems.
• Wide Engine Support: Suitable for 1 to 12 cylinder engines.
• Compact Size: Fits standard 2 1/16 inch gauge openings.
• Dedicated Harnesses: Includes separate 3 ft and 8 ft wiring harnesses for power and signal.
• Secure Installation: Mounting ring provided for a stable fit.
• LED Lighting Ready: Compatible with vehicle lighting circuits for nighttime visibility.
