Description

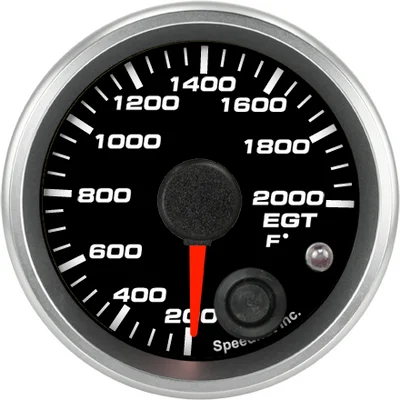

The Speedhut 2-1/16″ 200-2000F EGT Temp Gauge w/ Warning (R2-ET2-REV) is a vital instrument for monitoring your engine’s exhaust gas temperature, a key factor in engine performance and longevity. This high-precision gauge measures temperatures from 200 to 2000°F using a rugged K-type thermocouple probe with a 9-foot braided steel line for exceptional durability. Designed in a standard 2-1/16 inch (52mm) size, it fits most aftermarket gauge pods. A built-in warning light provides real-time alerts when EGT exceeds user-set thresholds, helping to prevent engine damage. With included installation accessories like a mounting ring and power/lighting harness, the setup is straightforward and efficient.
KEY FEATURES AND BENEFITS:
- Wide Temperature Range: Measures exhaust gas temperatures from 200°F to 2000°F for detailed performance insight.
- High-Quality Probe: Comes with a K-type thermocouple probe and 9-foot braided steel line for accurate, reliable readings in harsh environments.
- Built-in Warning Light: User-configurable alert activates when EGT exceeds preset safety limits.
- Standard Gauge Size: 2-1/16 inch (52mm) design fits most common gauge pods and mounts.
- Easy Electrical Setup: Includes a 3-foot power and lighting harness for quick and simple connections.
- Simple Mounting Solution: Spin-lock mounting ring provided for secure, tool-free installation.
SPECIFICATIONS:
- Gauge Type: Temperature Gauge
- Gauge Subtype: Exhaust Gas Temperature Gauge
- Temp Sender Type: K Type Thermocouple Temp Probe
- Range: 200-2000 °F
- Size: 2 1/16 inch
- Hole Size: 2.062 inches (52mm)
- Standard or Metric: Standard
- Warning Light: Yes
- Gauge Mounting Ring: Included
- Ships With:
- 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
- EGT/Ultra Low Type K Probe 9′ long, Braided steel line
HOW TO USE:
- Mount the Gauge: Use the included mounting ring to secure the 2-1/16 inch gauge in a visible location inside your vehicle.
- Install the Thermocouple Probe: Position the K-type probe in your vehicle’s exhaust manifold where it can measure representative gas temperatures. Route the 9-foot braided line away from hot or moving components.
- Connect the Wiring Harness: Attach the 3-foot power and lighting harness to a 12V power source, a ground, and optionally to your lighting circuit for LED backlighting.
- Connect the Probe: Securely plug the thermocouple probe leads into the correct terminals on the back of the gauge.
- Set the Warning Light: Use the dial or button on the gauge to define the temperature threshold for the warning light to activate.
- Verify Operation: Start the engine and allow it to warm up. Confirm that the gauge displays accurate readings and that the warning light works correctly at the set temperature limit.
BENEFITS OF USING THE SPEEDHUT 2-1/16″ 200-2000F EGT TEMP GAUGE W/ WARNING (R2-ET2-REV):
- Allows precise monitoring of exhaust gas temperatures, a key metric for engine tuning and diagnostics.
- Helps detect performance issues such as lean air-fuel ratios or restricted exhaust flow early.
- Prevents engine damage by alerting the driver to excessive EGT levels via a configurable warning light.
- Includes a robust and accurate K-type thermocouple probe with a long braided lead for versatile installation.
- Streamlined setup process with included mounting ring and wiring harness for quick integration.
FEATURES:
- Visual Warning System: User-settable LED alert warns of critical temperature thresholds.
- Reliable Thermocouple: High-performance K-type probe with braided steel line ensures durability and accuracy.
- Long Probe Lead: 9-foot cable allows flexible installation, even in complex engine bays.
- LED Illumination: Provides clear visibility under various lighting conditions.
- Standard Fitment: 2-1/16 inch size integrates with most aftermarket gauge solutions.
- Secure Installation: Spin-lock ring simplifies and secures gauge placement.
- Complete Harness Included: 3-foot power and lighting cable streamlines electrical setup.
