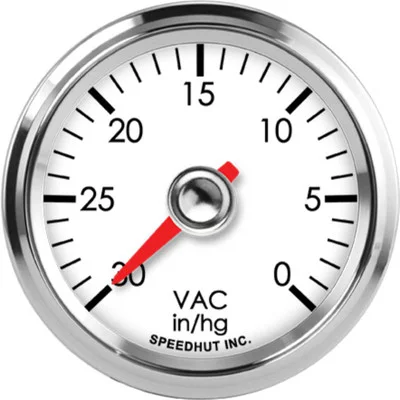

Speedhut 2-1/16″ 30-0in/hg Vacuum Gauge (L2-VC1-LEG)

Description

The Speedhut 2-1/16″ 30-0in/hg Vacuum Gauge (L2-VC1-LEG) is engineered to provide precise and reliable monitoring of your engine’s vacuum and boost levels. This gauge is essential for understanding engine efficiency and performance, allowing you to identify potential issues early. With its clear display and accurate readings, you can stay informed about your vehicle’s vital signs.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Measures both vacuum (up to 30 in/hg) and boost pressure.
• Accurate Readings: Features a high-performance 3-wire military-grade transducer for precise measurements.
• Easy Installation: The 2 1/16″ size (52mm) and included wiring harness simplify the installation process.
• Complete Kit: Ships with all necessary components, including the pressure sensor and wiring.
• Reliable Performance: Designed to provide consistent and accurate readings under various operating conditions.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Range (Vacuum): 30-0 in/hg
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Included:
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Pressure Sensor – 30 psi

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2 1/16″ (52mm) opening in your vehicle’s dashboard or instrument panel and securely mount the gauge using the spin-lock ring or appropriate hardware.
2. Connect the Pressure Sensor: Identify a suitable vacuum/boost source on your engine’s intake manifold. Connect one end of the provided vacuum hose to this source and the other end to the included pressure sensor.
3. Wire the Power and Lighting: Connect the 3 ft Power & Lighting Harness to a 12V power source (ignition switched is recommended) and ground. This harness will power the gauge’s internal electronics and LED illumination.
4. Connect the Signal Wires: Connect the 3-wire cable from the pressure sensor to the corresponding wires on the Pressure Gauge Wiring Harness. Ensure proper polarity and secure connections.
5. Test the Gauge: With the engine running, observe the gauge readings to confirm proper installation and functionality. The gauge should display the current vacuum or boost level.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 30-0IN/HG VACUUM GAUGE (L2-VC1-LEG):

• Provides real-time feedback on engine vacuum, aiding in fuel efficiency monitoring and diagnosing potential engine issues like leaks or valve timing problems.
• Allows you to monitor boost pressure accurately, crucial for turbocharged or supercharged vehicles to ensure optimal performance and prevent over-boosting.
• Offers a clear and precise display of critical engine data, enhancing driver awareness and control.
• The included high-quality pressure sensor ensures reliable and consistent readings, unlike less accurate sensors.
• The complete kit simplifies the installation process, saving time and effort.

FEATURES:

• Simultaneously displays both vacuum and pressure readings in a compact 2 1/16″ format.
• Utilizes a robust 3-wire military-grade transducer for exceptional accuracy and longevity.
• Designed for easy mounting with a standard 52mm hole size.
• Comes with a pre-wired harness for straightforward electrical connections.
• Includes a 30 psi pressure sensor suitable for measuring both vacuum and moderate boost levels.
