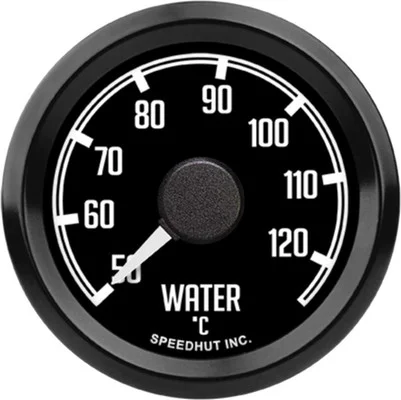

Speedhut 2-1/16″ 50-125C Water Temp Gauge JDM Datsun Z (L2-WT2-DATZ)

Description

The Speedhut 2-1/16″ 50-125C Water Temp Gauge JDM Datsun Z (L2-WT2-DATZ) is a vital instrument for any Datsun Z owner focused on maintaining peak engine performance and longevity. This gauge provides precise, real-time temperature readings, allowing you to proactively monitor your engine’s cooling system. Its straightforward installation makes it a valuable addition for assessing and ensuring optimal engine operating temperatures, helping you catch potential problems before they escalate.

KEY FEATURES AND BENEFITS:

• Provides accurate and immediate engine coolant temperature readings within a 50-125°C range.
• Utilizes a performance 2-wire temperature sender for reliable data.
• Helps you monitor engine health, preventing potential overheating and costly damage.
• Contributes to maintaining optimal engine performance by ensuring it operates within the correct temperature range.
• Features a robust design for lasting performance in various driving conditions.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Temp Sender Type: 2-Wire Temp Sender (Performance)
• Range: 50-125 °C
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Standard or Metric: Metric
• Warning Light: No
• Ships With:
• Temperature Gauge
• Temperature Gauge Wiring Harness (2-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Speedhut Temperature Sensor

HOW TO USE:

1. Mount the Gauge: Secure the 2-1/16″ gauge in a suitable location within your Datsun Z’s dashboard or an aftermarket gauge pod, ensuring the 2.062″ (52mm) hole size is correct.
2. Install the Temperature Sensor: Locate the appropriate port on your engine block or coolant line and install the included Speedhut temperature sensor. Ensure it is securely tightened for an accurate reading.
3. Connect the Sensor Wiring: Attach the provided 2-wire cable from the temperature sensor to the corresponding terminals on the back of the temperature gauge.
4. Connect Power and Lighting: Use the 3 ft power and lighting harness to connect the gauge to a suitable 12V power source in your vehicle (typically an ignition-switched source) and to a lighting circuit if you desire the gauge to illuminate with your other instruments. Ensure proper grounding.
5. Verify Functionality: Once all connections are made, start your vehicle and observe the gauge as the engine warms up. The gauge should display a gradual increase in temperature. Check for any erratic readings or malfunctions.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 50-125C WATER TEMP GAUGE JDM DATSUN Z (L2-WT2-DATZ):

• Critical Insights: Provides you with essential data about your engine’s coolant temperature.
• Early Overheating Detection: Identifies issues before they become major problems, potentially saving you from costly repairs.
• Engine Longevity: Promotes long-term health by keeping temperatures in check.
• Improved Efficiency: Operating within the optimal range can lead to better performance and fuel economy.
• Easy Monitoring: Offers a clear and reliable way to stay informed about your cooling system’s performance.

FEATURES:

• Displays temperature readings in Celsius from 50 to 125 degrees.
• Employs a dedicated 2-wire performance temperature sending unit for accurate data acquisition.
• Designed with a standard 2 1/16″ (52mm) diameter for versatile mounting options.
• Specifically styled with a JDM aesthetic to complement Datsun Z interiors.
• Includes all necessary wiring harnesses for both the temperature sensor and the gauge’s power and illumination.
• Features LED backlighting for clear visibility during both day and night driving conditions.
• Offers a direct and clear analog display of the engine’s coolant temperature.
• Provides a significant upgrade over potentially less accurate or failing factory gauges in older vehicles.
