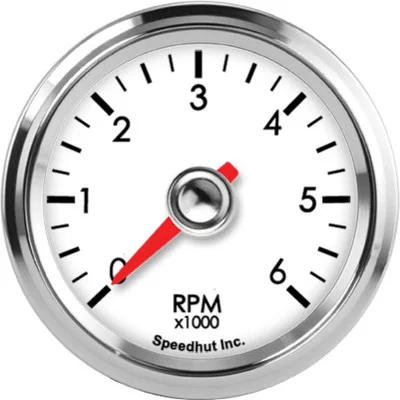

Speedhut 2-1/16″ 6K RPM Diesel Tachometer (L2-TC7-LEG)

Description

The Speedhut 2-1/16″ 6K RPM Diesel Tachometer (L2-TC7-LEG) provides accurate and reliable monitoring of your diesel engine’s rotational speed. Designed for a seamless integration into your instrument panel, this gauge offers a clear and precise display of engine RPM up to 6000 revolutions per minute. Its compatibility with various diesel signal types ensures broad applicability across different diesel vehicles and equipment.

KEY FEATURES AND BENEFITS:

• Accurate RPM Monitoring: Provides precise readings of your diesel engine’s revolutions per minute, allowing for optimal engine management and performance awareness.
• Diesel Signal Compatibility: Specifically engineered to work with common diesel signal sources, including the alternator’s ‘R’ or ‘W’ terminal, crank sensor signals, and magnetic pulse sensors, ensuring wide vehicle compatibility.
• Compact Size: The 2-1/16 inch (52mm) gauge size offers a space-saving solution for dashboards and instrument panels without compromising readability.
• Standard Mounting: Designed to fit a standard 2.10″ (54mm) diameter hole, simplifying installation and ensuring a secure fit.
• Clear Readout: The gauge face is designed for easy visibility of the RPM readings, allowing for quick and effortless monitoring while operating your vehicle or equipment.
• Durable Construction: Built with quality materials to withstand the demands of automotive and industrial environments, ensuring long-lasting performance.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Signal Type: Diesel (alternator ‘R’ or ‘W’ terminal, crank sensor, magnetic pulse sensor)
• Range: 0 – 6000 RPM
• Size: 2 1/16 inch (52 mm)
• Mounting Hole Size: 2.10 inches (54 mm)
• Internal Shift Light: No
• Standard or Metric: Standard

HOW TO USE:

1. Preparation: Ensure you have the necessary tools for installation, including a drill (if a mounting hole needs to be created or adjusted), wiring tools, and the appropriate connectors for your vehicle’s electrical system.
2. Mounting: Locate a suitable position on your dashboard or instrument panel for the tachometer. If there isn’t an existing 2.10″ (54mm) hole, carefully drill one. Insert the tachometer into the hole, ensuring a snug and secure fit, typically using a mounting bracket or clamp included with the gauge.
3. Wiring – Signal Connection: Identify the appropriate signal wire from your diesel engine. This will be either the ‘R’ or ‘W’ terminal on the alternator, the crank sensor signal wire, or the wire from a magnetic pulse sensor, depending on your engine type. Connect this signal wire to the designated input terminal on the back of the tachometer. Refer to the tachometer’s wiring diagram for the correct terminal.
4. Wiring – Power and Ground: Connect the power wire from the tachometer to a 12V power source in your vehicle that is active when the ignition is on. Connect the ground wire from the tachometer to a reliable ground point on the vehicle’s chassis.
5. Testing: Once all connections are made, start your diesel engine. Observe the tachometer to ensure it is receiving a signal and displaying the engine’s RPM accurately as the engine speed changes.
6. Final Adjustments: Secure any loose wiring and ensure the tachometer is firmly mounted.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 6K RPM DIESEL TACHOMETER (L2-TC7-LEG):

• Helps you maintain a clear understanding of your diesel engine’s operating speed.
• Enables you to optimize engine performance by operating within the engine’s optimal RPM range.
• Improves fuel efficiency by preventing over-revving, which could potentially lead to engine damage.
• Provides real-time RPM data, contributing to safer and more controlled operation of your vehicle or equipment.
• Its compatibility with various diesel signal types ensures versatility across a wide range of applications.

FEATURES:

• Specifically calibrated for diesel engine RPM measurement.
• Designed for straightforward integration into existing instrument panels.
• Provides an immediate and easily interpretable display of engine speed.
• Robust construction ensures reliable operation in demanding conditions.
• Offers a direct connection to common diesel engine signal outputs.
• The 2-1/16″ size provides a balance between visibility and space efficiency.
• Contributes to better engine management and operational awareness.
• Facilitates monitoring of engine performance under different loads and conditions.
