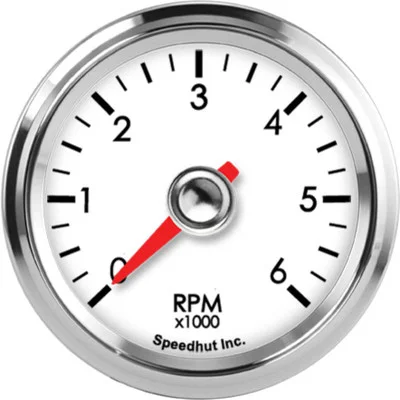

Speedhut 2-1/16″ 6K RPM Tachometer (L2-TC2-LEG)

Description

The Speedhut 2-1/16″ 6K RPM Tachometer (L2-TC2-LEG) provides accurate and reliable engine speed readings for a wide variety of vehicles. Designed for straightforward installation and broad compatibility, this analog gauge is an excellent addition for monitoring your engine’s performance. Its clear display and robust construction ensure consistent operation.

KEY FEATURES AND BENEFITS:

• Precise RPM Measurement: Displays engine speed up to 6,000 RPM.
• Ignition System Compatibility: Works with standard spark plug ignition systems.
• Engine Support: Compatible with engines having 1 to 12 cylinders.
• Standard Size Fit: Fits standard 2 1/16 inch (52mm) dashboard openings.
• Secure Mounting: Easy and reliable installation using the included mounting ring.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Range: 0 – 6,000 RPM
• Size: 2 1/16 inch (52mm)
• Compatibility: 1-12 cylinder engines with standard spark plug ignition systems
• Mounting Hole Size: 2.062 inches (52mm)
• Included: Gauge, Mounting Ring

HOW TO USE:

1. Prepare the Mounting Location: Choose a suitable 2 1/16 inch (52mm) diameter opening in your vehicle’s dashboard.
2. Connect the Power: Attach the gauge’s power wire to a 12V power source in your vehicle.
3. Connect the Ground: Secure the ground wire to a proper ground point on your vehicle’s chassis.
4. Connect the Tachometer Signal Wire: Link the signal wire from the gauge to the negative (-) terminal of your ignition coil or to the tachometer output from your ECU, based on your vehicle’s configuration.
5. Mount the Gauge: Insert the gauge into the 2.062-inch (52mm) dashboard hole from the front.
6. Secure with Mounting Ring: Slide the included mounting ring onto the back of the gauge and tighten it to lock the gauge into place.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 6K RPM TACHOMETER (L2-TC2-LEG):

• Real-Time RPM Tracking: Allows you to accurately monitor engine speed as you drive.
• Optimized Shifting: Helps determine ideal RPMs for gear shifting, improving performance and fuel efficiency.
• Early Problem Detection: Identifies abnormal RPM behavior that may indicate engine issues.
• Wide Compatibility: Suitable for a large range of vehicles using standard ignition systems.
• User-Friendly Installation: Simple setup using the included hardware ensures a hassle-free experience.

FEATURES:

• Analog design enables quick and easy RPM reading at a glance.
• Engineered specifically for use with standard spark plug ignition systems.
• Supports a broad range of engine configurations (1 to 12 cylinders).
• Compact 2 1/16 inch diameter fits common automotive gauge mounts.
• Includes a spin-lock ring for secure and efficient installation.
