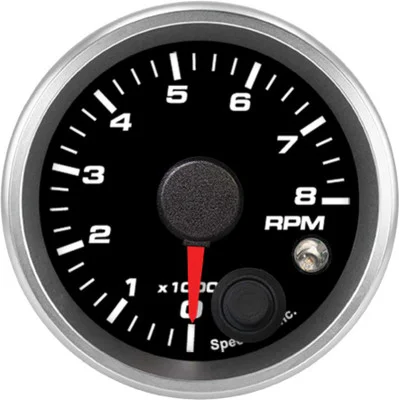

Speedhut 2-1/16″ 8K RPM Shift-light Tachometer (R2-TC3-REV)

Description

The Speedhut 2-1/16″ 8K RPM Shift-light Tachometer (R2-TC3-REV) is designed to provide accurate and immediate readings of your engine’s revolutions per minute. This gauge features an 8,000 RPM range and an integrated shift light to help you optimize your vehicle’s performance by indicating the ideal time for gear changes. Its compact 2-1/16 inch (52mm) size makes it suitable for a variety of dashboards and gauge pods. Compatibility with standard spark plug ignition systems across 1 to 12 cylinders ensures broad application. The included mounting ring simplifies installation.

KEY FEATURES AND BENEFITS:

• Precise RPM Monitoring: Accurately displays engine speed up to 8,000 RPM, allowing for informed driving and engine management.
• Integrated Shift Light: Provides a clear visual cue for optimal gear shifting, potentially improving acceleration and fuel efficiency.
• Wide Compatibility: Functions seamlessly with standard spark plug ignition systems on engines with 1 to 12 cylinders, offering versatility for different vehicles.
• Compact Size: The 2-1/16 inch (52mm) diameter allows for easy integration into various dashboard layouts without occupying excessive space.
• Easy Installation: Comes with a gauge mounting ring and necessary wiring harnesses for a straightforward setup process.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Standard or Metric: Standard
• Tachometer Signal Type: Standard spark plug ignition systems
• Compatibility: 1-12 cylinder
• Range: 0-8,000 RPM
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Internal Shift Light: Yes
• Gauge Mounting Ring: Included
• Ships With:
  • 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Secure the tachometer in your desired location using the included mounting ring. Ensure the 2.062-inch (52mm) hole is appropriately sized.
2. Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the designated terminals on the back of the tachometer. Connect the power and ground wires to your vehicle’s electrical system according to your vehicle’s wiring diagram.
3. Connect the Tachometer Signal Harness: Connect the 8 ft Tachometer Harness to the tachometer. The single wire end of this harness needs to be connected to the negative (-) side of your ignition coil or the designated tachometer output signal wire from your vehicle’s ECU (Engine Control Unit), depending on your specific vehicle.
4. Set the Shift Light: If the tachometer allows for user adjustment of the shift light RPM, follow the manufacturer’s specific instructions to set the desired RPM point for the shift light to activate. This typically involves a button or dial on the gauge.
5. Test the Gauge: Start your vehicle and observe the tachometer readings as the engine RPM changes. Verify that the shift light illuminates at the set RPM (if applicable).

BENEFITS OF USING THE SPEEDHUT 2-1/16″ 8K RPM SHIFT-LIGHT TACHOMETER (R2-TC3-REV):

• Utilizing the Speedhut 2-1/16″ 8K RPM Shift-light Tachometer provides drivers with a clear and immediate understanding of their engine’s operating speed.
• Allows for more precise gear changes, potentially leading to improved fuel efficiency and optimized engine performance.
• The integrated shift light offers a valuable visual aid for performance driving, ensuring shifts occur at the ideal RPM for maximum power output.
• The gauge’s compact size ensures it can be installed in various locations without obstructing the driver’s view or overwhelming the dashboard.
• Its compatibility with a broad range of vehicles equipped with standard spark plug ignition systems makes it a versatile and practical addition for any driver.

FEATURES:

• Provides real-time engine speed indication up to 8,000 RPM.
• Incorporates an internal light that illuminates to signal optimal shift points.
• Designed for straightforward connection to standard spark plug ignition systems.
• Suitable for engines with 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, or 12 cylinders.
• Features a 2 1/16 inch (52mm) diameter for easy mounting in common gauge pods.
• Requires a 2.062-inch (52mm) opening for installation.
• Includes an 8-foot wiring harness specifically for the tachometer signal on LED-lit gauges.
• Comes with a 3-foot power and lighting harness for LED-lit gauges and clocks.
• The included ring ensures a secure and finished look after installation.
