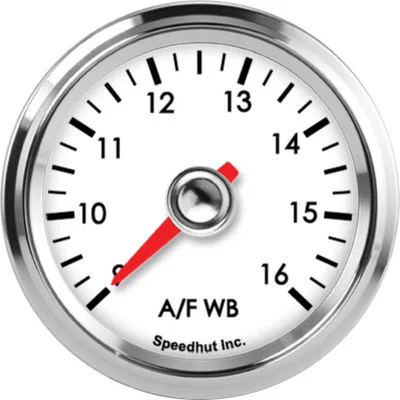

Speedhut 2-1/16″ Ballenger 9-16 Air/Fuel Wide Band Gauge (L2-WB7-LEG)

Description

The Speedhut 2-1/16″ Ballenger 9-16 Air/Fuel Wide Band Gauge (L2-WB7-LEG) is a reliable instrument designed to provide accurate real-time monitoring of your engine’s air/fuel ratio. Specifically engineered for compatibility with Ballenger AFR500 and NGK AFX wideband controllers, this gauge displays readings within the 9 to 16 AFR range. Its classic design and standard 2 1/16″ (52mm) size make it a versatile addition to various vehicle setups.

KEY FEATURES AND BENEFITS:

• Precise Monitoring: Offers accurate air/fuel ratio readings between 9 and 16, crucial for engine tuning and performance optimization.
• Controller Compatibility: Specifically designed to work seamlessly with Ballenger AFR500 and NGK AFX wideband controllers, ensuring reliable data interpretation.
• Standard Size: The 2 1/16″ (52mm) diameter allows for easy installation in common gauge pods and mounting locations.
• Clear Display: Provides an analog representation of the air/fuel ratio for quick and easy interpretation.
• Simple Installation: Features a spin-lock ring for straightforward mounting in a 2.062″ (52mm) hole.
• Included Harnesses: Comes with necessary wiring harnesses for power, lighting, and signal connection.

SPECIFICATIONS:

• Gauge Type: Air/Fuel Wideband Gauge
• Range: 9-16 AFR
• Size: 2 1/16 inch (52mm)
• Hole Size: 2.062 inches (52mm)
• Input Voltage: 0 volts to 5 volts
• Controller Compatibility: Ballenger AFR500, NGK AFX
• Ships With:
  • 8 ft Tachometer Harness (1 Wire 2 Pin Connector)
  • 3 ft Power & Lighting Harness

HOW TO USE:

• Mount the Gauge: Locate a suitable 2.062″ (52mm) opening in your vehicle. Insert the gauge and secure it using the spin-lock ring.
• Connect the Power Harness: Attach the 3 ft power and lighting harness to the gauge. Connect the power wire (typically red) to a switched 12V power source and the ground wire (typically black) to a reliable ground. Connect the lighting wire (if applicable) to your vehicle’s lighting circuit.
• Connect the Signal Harness: Connect the 8 ft tachometer harness to the designated signal input on the back of the gauge.
• Connect to the Wideband Controller: Connect the other end of the signal harness to the output signal of your Ballenger AFR500 or NGK AFX wideband controller. Ensure proper wiring according to the controller’s instructions. The 0V to 5V output from the controller corresponds to the 9-16 AFR range on the gauge.
• Verify Functionality: Once all connections are secure, turn on your vehicle’s ignition. The gauge should power up and display the air/fuel ratio reading from the wideband controller.

BENEFITS OF USING THE SPEEDHUT 2-1/16″ BALLENGER 9-16 AIR/FUEL WIDE BAND GAUGE (L2-WB7-LEG):

• Provides precise monitoring of your engine’s air/fuel mixture.
• Critical for achieving optimal performance, fuel efficiency, and engine longevity.
• Offers real-time visual representation of the AFR, enabling informed adjustments during tuning.
• Ensures safe and efficient engine operation with accurate feedback.
• A valuable tool for enthusiasts and professionals using compatible wideband controllers.

FEATURES:

• Analog display for immediate interpretation of air/fuel readings.
• Specifically calibrated for the 0-5V output of Ballenger AFR500 and NGK AFX controllers.
• Compact 2 1/16″ size for versatile mounting options.
• Easy to install with the included spin-lock mounting system.
• Comes with essential wiring harnesses for a straightforward connection process.
• Classic gauge face design for a traditional aesthetic.
