Description

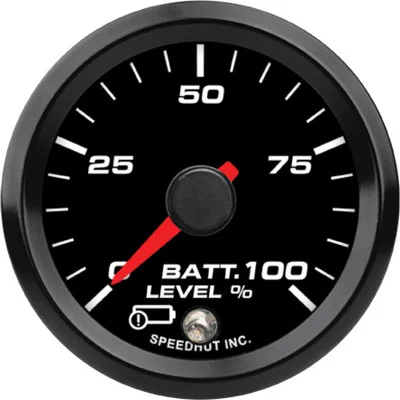

The Speedhut 2-1/16″ EV Battery Level / SOC Gauge w/ Warning (FAE2-SC1-EV) is an essential instrument for any electric vehicle, providing clear and precise monitoring of your battery’s state of charge. This gauge allows you to stay informed about your driving range and effectively manage your charging needs, contributing to the overall reliability of your EV’s powertrain. Designed for seamless integration with your vehicle’s existing electronics via CAN-Bus, it offers a straightforward solution for keeping track of your battery’s power.
KEY FEATURES AND BENEFITS:
- Real-time Battery Monitoring: Provides continuous and accurate readings of your EV battery’s state of charge, displayed on a clear 0-100% scale.
- Low Battery Warning: Features an integrated warning light that illuminates when your battery level drops below 15%, giving you ample time to plan for charging.
- CAN-Bus Integration: Connects directly to your vehicle’s CAN-Bus system (operating at a 500K baud rate) for reliable data acquisition without the need for external sensors.
- Compact Size: The 2-1/16 inch (52mm) diameter ensures it can be easily mounted in various locations on your dashboard or instrument panel, requiring a 2.10″ (54mm) mounting hole.
- Enhanced Battery Management: Helps you make informed decisions that can contribute to extending your battery’s lifespan and overall efficiency.
- Easy Installation: Designed for relatively simple installation by utilizing the vehicle’s CAN-Bus network. The included harnesses facilitate a smooth connection process.
SPECIFICATIONS:
- Gauge Type: EV Battery Level / State of Charge (SOC)
- Signal Type: CAN-Bus
- Baud Rate: 500K
- Range: 0 – 100%
- Size: 2-1/16 inch (52mm)
- Mounting Hole Size: 2.10 inch (54mm)
- Warning Light Activation: Below 15% battery level
- Ships With:
- 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
- EV CAN Jumper Harness
- EV CAN Harness
HOW TO USE:
- Identify a suitable mounting location: Choose a spot on your dashboard or instrument panel that provides good visibility and allows for the 2.10″ (54mm) mounting hole.
- Prepare the mounting hole: Drill the necessary 2.10″ (54mm) hole if one is not already present.
- Connect the harnesses:
- Connect the provided EV CAN Jumper Harness and EV CAN Harness to the Speedhut gauge.
- Connect the other end of the EV CAN Harness to your vehicle’s CAN-Bus system (ensure correct connections based on your vehicle’s wiring diagram).
- Connect the 3 ft Power & Lighting Harness to the gauge’s power and lighting connections, and then connect the other end to a suitable power source in your vehicle.
- Mount the gauge: Insert the gauge into the prepared mounting hole and secure it using the provided mounting hardware.
- Verify functionality: Once all connections are secure, turn on your vehicle to ensure the gauge powers up and displays the battery level correctly. The warning light should illuminate if the battery level is below 15% (if applicable upon initial power-up).
BENEFITS OF USING THE SPEEDHUT 2-1/16″ EV BATTERY LEVEL / SOC GAUGE W/ WARNING (FAE2-SC1-EV):
- Improved Awareness: Gain a clear and constant understanding of your electric vehicle’s remaining battery charge, reducing range anxiety.
- Proactive Charging: The low battery warning light alerts you in advance, allowing you to plan your charging stops conveniently.
- Enhanced Powertrain Reliability: By closely monitoring battery levels, you can potentially identify unusual discharge patterns early, contributing to the long-term health and reliability of your EV’s battery system.
- Seamless Integration: The CAN-Bus connectivity ensures accurate and direct data from your vehicle’s battery management system.
- Simplified Monitoring: Provides a dedicated and easy-to-read display of critical battery information, unlike relying solely on less precise factory indicators.
FEATURES:
- Integrated visual warning for critical low battery state (below 15%).
- Direct communication with the EV system via CAN-Bus protocol at 500K baud rate.
- Compact 2-1/16 inch (52mm) form factor for versatile mounting options.
- Requires a 2.10 inch (54mm) diameter cutout for installation.
- Includes essential wiring harnesses for straightforward connection to your EV’s system.
