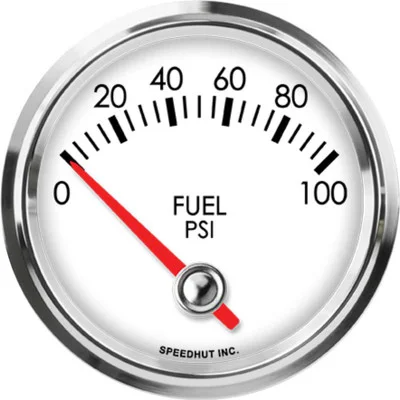

Speedhut 2-5/8″ 0-100 PSI Fuel Pressure Gauge 90° Sweep (L25-FP10-LEG)

Description

The Speedhut 2-5/8″ 0-100 PSI Fuel Pressure Gauge 90° Sweep (L25-FP10-LEG) is engineered to provide accurate and reliable monitoring of your vehicle’s fuel system pressure. Designed with a clear, easy-to-read metric display and a precise 90-degree sweep, this gauge ensures you have the vital information you need for optimal engine performance. It comes complete with a high-quality 3-wire military-grade transducer for dependable readings and all the necessary wiring harnesses for a straightforward installation process.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Provides precise readings of fuel pressure ranging from 0 to 100 psi, allowing for accurate assessment of fuel system performance.
• Reliable Sender: Includes a robust 3-wire military-grade transducer, ensuring consistent and dependable pressure measurements.
• Easy Installation: Comes with a dedicated pressure gauge wiring harness and a separate power and lighting harness, simplifying the setup process.
• Clear Display: The 2-5/8 inch gauge with a 90-degree sweep offers excellent visibility of the fuel pressure readings in metric units.
• Complete Package: Ships with all essential components, including the pressure sensor and wiring, so you have everything needed to install the gauge.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Fuel Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-100 psi
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Units: Metric
• Warning Light: No
• Ships With:
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Pressure Sensor – 100 psi
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Securely install the 2-5/8 inch gauge in your desired location, ensuring the 2.67-inch (68mm) mounting hole is appropriately sized.
2. Install the Pressure Sensor: Locate a suitable point in your vehicle’s fuel system to install the included 100 psi pressure sensor. Ensure proper sealing to prevent leaks.
3. Connect the Wiring Harness:
   • Connect the 3-wire cable from the pressure gauge wiring harness to the corresponding terminals on the back of the gauge.
   • Connect the other end of the 3-wire cable to the terminals on the pressure sensor.
   • Use the 3 ft power & lighting harness to provide power and illumination (if applicable) to the gauge, following the gauge’s wiring diagram for proper connections to a power source and ground.
4. Secure Connections: Double-check all wiring connections to ensure they are tight and secure.
5. Test the Gauge: With the vehicle running, observe the gauge to confirm it is displaying accurate fuel pressure readings.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-100 PSI FUEL PRESSURE GAUGE 90° SWEEP (L25-FP10-LEG):

• Closely monitors your vehicle’s fuel system to maintain optimal engine performance.
• Helps detect issues such as a failing fuel pump, clogged fuel filter, or faulty pressure regulator before they cause serious damage.
• Supports real-time monitoring for accurate fuel delivery and better fuel economy.
• Improves overall engine longevity by ensuring correct fuel pressure.
• High-quality sender and complete wiring harness simplify the installation process.

FEATURES:

• 90-Degree Sweep: Offers a visually clear and responsive indication of fuel pressure changes.
• Military-Grade Transducer: Provides highly accurate and dependable pressure readings under various operating conditions.
• Dedicated Wiring Harnesses: Simplifies the electrical connections for both the sensor signal and gauge power/lighting.
• Standard Sizing: The 2-5/8 inch size is a common and versatile fit for many aftermarket gauge pods and mounting solutions.
• Metric Display: Presents fuel pressure readings in the widely used metric unit of psi for easy interpretation.
