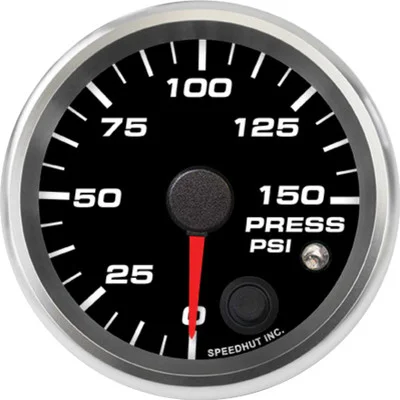

Speedhut 2-5/8″ 0-150 PSI Pressure Gauge w/ Warning (R25-P1-REV)

Description

The Speedhut 2-5/8″ 0-150 PSI Pressure Gauge w/ Warning (R25-P1-REV) provides accurate and reliable pressure monitoring for various applications. Its clear display and integrated warning light allow for immediate awareness of pressure levels, contributing to the overall performance and safety of your system. This gauge is designed for a 2 5/8 inch mounting hole and utilizes a high-quality 3-wire military-grade transducer to ensure precise readings.

KEY FEATURES AND BENEFITS:

• Accurate Pressure Monitoring: Displays pressure readings from 0 to 150 PSI, allowing for precise tracking of system conditions.
• High-Performance Sensor: Features a 3-wire military-grade transducer, known for its reliability and accuracy in demanding environments.
• Integrated Warning Light: Includes a built-in warning light that can be configured to alert the user when pressure levels exceed a set threshold, enhancing safety and preventing potential damage.
• Standard Size: The 2 5/8 inch gauge size fits common mounting locations with a required hole size of 2.68″ (68mm), simplifying installation.
• Complete Wiring Included: Ships with all necessary wiring harnesses, including a pressure gauge wiring harness (3-wire cable) and a 3 ft power & lighting harness for LED illumination.
• Included Pressure Sensor: Comes with a robust 300psi pressure sensor, ensuring compatibility and reliable data transmission to the gauge.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Range: 0-150 psi
• Size: 2 5/8 inch
• Hole Size: 2.68″ (68mm)
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Warning Light: YES
• Included: Pressure Sensor (300psi), Pressure Gauge Wiring Harness (3-Wire Cable), 3 ft Power & Lighting Harness

HOW TO USE:

• Mount the Gauge: Locate a suitable 2.68″ (68mm) diameter hole and securely mount the 2 5/8 inch Speedhut pressure gauge.
• Install the Pressure Sensor: Identify the point in your system where pressure needs to be monitored and install the included 300psi pressure sensor. Ensure proper sealing to prevent leaks.
• Connect the Sensor Wiring: Use the provided 3-wire pressure gauge wiring harness to connect the pressure sensor to the back of the gauge. Refer to the wiring diagram for correct connections.
• Connect Power and Lighting: Utilize the 3 ft power & lighting harness to connect the gauge to a suitable power source and ground. This harness also powers the LED illumination of the gauge.
• Configure the Warning Light (if applicable): Follow the manufacturer’s instructions to set the desired pressure threshold for the warning light to activate.
• Monitor Pressure: Once all connections are secure, the gauge will display the current pressure reading. Observe the gauge regularly and heed any warnings from the integrated light.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-150 PSI PRESSURE GAUGE W/ WARNING (R25-P1-REV):

• Provides accurate and immediate pressure information, crucial for maintaining optimal system performance.
• Utilizes a high-quality military-grade sensor to ensure reliability and precision.
• Integrated warning light offers an added safety measure by alerting to critical pressure changes.
• Includes a complete set of components, simplifying installation and saving time.

FEATURES:

• Clear and Easy-to-Read Display: Provides instant pressure readings at a glance.
• Robust Transducer Technology: Ensures consistent and accurate measurements even under demanding conditions.
• Visual Pressure Alerts: The integrated warning light immediately signals abnormal pressure levels.
• Straightforward Installation: Designed to fit standard 2 5/8 inch openings.
• Comprehensive Wiring Kit: Includes all necessary cables for a hassle-free setup.
• Durable Sensor Included: Comes with a 300psi sensor engineered for reliable performance.
