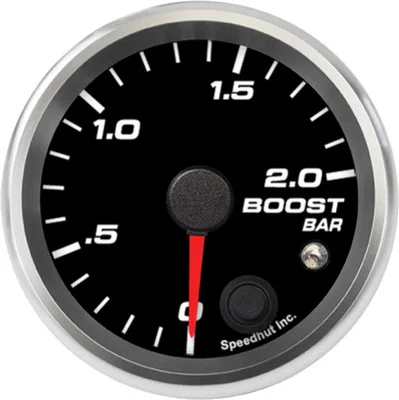

Speedhut 2-5/8″ 0-2.0 Bar Boost Gauge w/ Warning (R25-B7-REV)

Description

The Speedhut 2-5/8″ 0-2.0 Bar Boost Gauge w/ Warning (R25-B7-REV) is a precise instrument designed to monitor the pressure levels within your turbocharged or supercharged engine. This metric gauge provides accurate readings from 0 to 2 bar, allowing you to keep a close eye on critical engine performance metrics. Equipped with a high-quality 3-wire military-grade transducer, this gauge offers reliable and consistent measurements. The integrated warning light adds an extra layer of safety, alerting you if pressure exceeds a predefined threshold. Designed for easy installation in a standard 2.67″ (68mm) gauge opening, this Speedhut gauge is a valuable tool for any performance-minded vehicle owner.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Provides precise readings of boost and vacuum levels, essential for understanding engine performance.
• High-Quality Sensor: Features a 3-wire military-grade transducer for reliable and consistent pressure measurements.
• Configurable Warning Light: Allows you to set a pressure threshold, with a visual alert if that limit is exceeded, helping prevent potential engine damage.
• Metric Measurement: Displays pressure in bar (0-2 bar range), a common unit for boost measurement.
• Standard Size: With a 2-5/8 inch diameter and requiring a 2.67″ (68mm) mounting hole, it fits seamlessly into many aftermarket gauge pods.
• Complete Wiring: Ships with all necessary wiring harnesses for straightforward installation of both the sensor and the gauge itself.

SPECIFICATIONS:

• Gauge Type: Boost/Vacuum Gauge
• Range: 0-2 bar
• Size: 2 5/8 inch
• Hole Size: 2.67″ (68mm)
• Measurement Unit: Metric
• Warning Light: Yes
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Included:
  • Pressure Sensor – 30 psi
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

• Mount the Gauge: Locate a suitable 2-5/8″ (68mm) opening in your vehicle’s dashboard or an aftermarket gauge pod. Secure the Speedhut boost/vacuum gauge in this opening.
• Install the Pressure Sensor: Identify a suitable location on your engine’s intake manifold to measure boost pressure. Install the included 30 PSI pressure sensor at this point.
• Connect the Sensor Wiring: Using the provided Pressure Gauge Wiring Harness (3-Wire Cable), connect the pressure sensor to the back of the Speedhut gauge. Ensure all connections are secure.
• Connect Power and Lighting: Use the 3 ft Power & Lighting Harness to connect the gauge to a suitable power source (typically 12V) and a ground. This harness also powers the gauge’s illumination.
• Set the Warning Light (Optional): Follow the manufacturer’s instructions (usually involving a button or dial on the gauge) to set your desired boost pressure warning threshold.
• Monitor Readings: Once installed and powered, the gauge will display the current boost and vacuum levels of your engine. Observe these readings during vehicle operation to ensure optimal performance.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-2.0 BAR BOOST GAUGE W/ WARNING (R25-B7-REV):

• Enhanced Engine Awareness: Provides real-time insights into your engine’s forced induction system, allowing for proactive monitoring and early detection of issues.
• Early Over-Boost Detection: The integrated warning light acts as an early warning system, alerting you to potentially damaging high boost conditions before they cause harm.
• Improved Engine Health: By closely monitoring boost levels, you can proactively address any issues that might lead to over-boosting, contributing to the longevity of your engine.
• Accurate and Reliable Data: The military-grade pressure transducer ensures precise and dependable readings, giving you confidence in the information displayed.
• Straightforward Installation: The inclusion of necessary wiring and a pressure sensor simplifies the installation process.

FEATURES:

• Dual Functionality: Provides instant and precise measurement of intake manifold pressure.
• Robust Transducer: Utilizes a high-performance 3-wire military-grade transducer designed for accuracy.
• Visual Alert System: Includes a user-configurable visual alert for exceeding set pressure limits.
• LED Backlighting: Features LED backlighting for clear visibility during both day and night driving.
