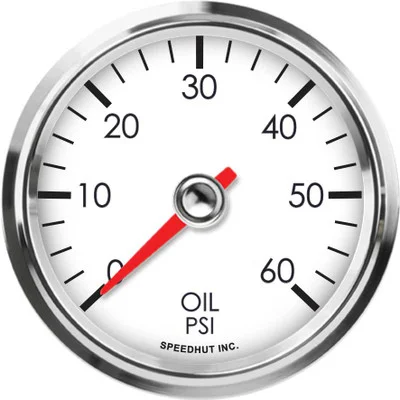

Speedhut 2-5/8″ 0-60 PSI Oil Pressure Gauge (L25-OP2-LEG)

Description

The Speedhut 2-5/8″ 0-60 PSI Oil Pressure Gauge (L25-OP2-LEG) provides accurate and reliable monitoring of your engine’s oil pressure. Designed for a 2 5/8 inch (68mm) mounting hole, this gauge displays readings from 0 to 60 PSI, offering essential information about your engine’s lubrication system. It comes complete with the necessary components for installation, ensuring a straightforward setup.

KEY FEATURES AND BENEFITS:

• Accurate Measurement: Offers precise oil pressure readings from 0 to 60 PSI, allowing for close monitoring of engine health.
• Reliable Sensor: Utilizes a 3-wire military-grade pressure transducer known for its performance and dependability in demanding conditions.
• Complete Wiring: Includes a 3 ft power & lighting harness for LED illumination and a dedicated 3-wire pressure gauge wiring harness for easy connection to the sensor.
• Included Sensor: Ships with a 100 PSI pressure sensor, providing the necessary component for measuring oil pressure.
• Standard Size: The 2 5/8 inch (68mm) size is a common and versatile dimension for gauge installations in various vehicles and applications.

SPECIFICATIONS:

• Gauge Type: Pressure Gauge
• Gauge Subtype: Oil Pressure Gauge
• Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
• Range: 0-60 PSI
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Ships With:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Pressure Sensor – 100 PSI
• Pressure Gauge Wiring Harness (3-Wire Cable)

HOW TO USE:

• Mount the Gauge: Locate a suitable 2.67 inch (68mm) diameter hole in your desired mounting location and securely install the Speedhut oil pressure gauge.
• Install the Pressure Sensor: Identify the oil pressure port on your engine. Install the included 100 PSI pressure sensor into this port, ensuring a tight and leak-free connection.
• Connect the Wiring Harness (Sensor): Attach the 3-wire pressure gauge wiring harness to the terminals on the installed pressure sensor.
• Connect the Wiring Harness (Power & Lighting): Connect the 3 ft power & lighting harness to the appropriate power and ground sources in your vehicle’s electrical system. This harness will also power the gauge’s illumination.
• Connect Gauge to Harnesses: Plug both the pressure sensor wiring harness and the power & lighting harness into the corresponding connectors on the back of the Speedhut oil pressure gauge.
• Verify Functionality: Once all connections are secure, start your engine and observe the gauge to ensure it is receiving power and displaying accurate oil pressure readings.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 0-60 PSI OIL PRESSURE GAUGE (L25-OP2-LEG):

• Continuous and precise monitoring of oil pressure helps prevent damage caused by abnormal pressure levels.
• The included high-quality 100 PSI sensor ensures accurate and dependable readings.
• Standard size and included wiring make installation straightforward and widely compatible.
• Clear PSI display allows for quick interpretation of vital engine data.
• Enhances vehicle diagnostics and overall engine performance awareness.

FEATURES:

• Clear Display: Provides easy-to-read oil pressure values in PSI.
• Military-Grade Component: Incorporates a robust 3-wire transducer for consistent performance.
• Direct Fit: Designed for a standard 2 5/8 inch (68mm) mounting location.
• Comprehensive Kit: Includes essential wiring for both operation and illumination.
• Durable Construction: Built with quality materials to withstand automotive environments.
