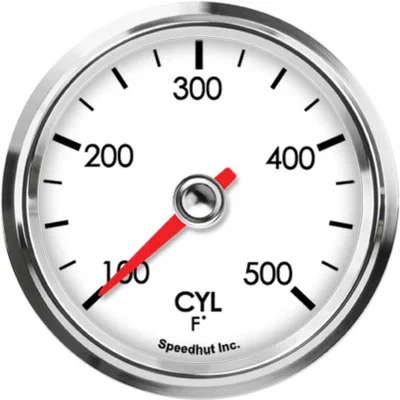

Speedhut 2-5/8″ 100-500F Cylinder Head Temp Gauge (L25-CT1-LEG)

Description

The Speedhut 2-5/8″ 100-500F Cylinder Head Temp Gauge (L25-CT1-LEG) is designed to provide accurate and reliable monitoring of your engine’s cylinder head temperature. Operating within a range of 100 to 500 degrees Fahrenheit, this gauge helps ensure your air-cooled engine remains within safe thermal limits to prevent overheating and potential engine damage. It features a precise K-type thermocouple probe with a durable 9-foot braided steel line for dependable temperature sensing. The included mounting ring and LED-lit power and lighting harness make installation quick and straightforward.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Provides precise real-time readings of your engine’s cylinder head temperature from 100°F to 500°F.
• K-Type Thermocouple Sensor: Delivers reliable temperature measurement under demanding conditions.
• Durable Construction: Features a 9-foot braided steel cable for added durability and protection against engine heat and abrasion.
• Complete Installation Kit: Includes a 14mm cylinder head temperature probe, mounting ring, and a 3 ft power and lighting harness for LED illumination.
• Easy to Read: The 2 5/8 inch display offers excellent readability, supported by LED backlighting for night visibility.
• Secure Fit: Designed for a 2.67-inch (68mm) gauge hole and mounts easily with the included ring.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Cylinder Head Temperature Gauge
• Range: 100-500 F
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Standard or Metric: Standard
• Warning Light: No
• Temp Sender Type: K Type Thermocouple Temp Probe
• Temp Probe Length: 9 feet
• Temp Probe Construction: Braided steel line
• Temp Probe Fitting: 14mm
• Included: Cylinder Head (14mm) Type K Probe (9′ long, Braided steel line), 3 ft Power & Lighting Harness, Gauge Mounting Ring

HOW TO USE:

1. Mount the Gauge: Locate a 2.67-inch (68mm) diameter opening and use the included mounting ring to secure the gauge in place.
2. Install the Temperature Probe: Thread the 14mm fitting of the K-type thermocouple probe into a designated port on the cylinder head or under a spark plug.
3. Route the Probe Cable: Carefully guide the 9-foot braided steel cable away from high heat or moving parts to the gauge location.
4. Connect the Wiring Harness: Use the 3-foot power and lighting harness to connect the gauge to a suitable 12V power source, enabling both operation and LED illumination.
5. Verify Operation: Start your engine and ensure the gauge displays a temperature reading and the LED backlighting functions correctly.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 100-500F CYLINDER HEAD TEMP GAUGE (L25-CT1-LEG):

• Helps prevent engine overheating by providing real-time temperature data.
• Improves engine longevity through early detection of abnormal thermal conditions.
• Offers clear visibility of temperature readings under any lighting conditions with LED illumination.
• Ensures dependable performance thanks to high-quality materials and construction.
• Simplifies installation with included mounting and wiring components.

FEATURES:

• Real-time monitoring of cylinder head temperature for improved engine management.
• Precise temperature sensing with K-type thermocouple probe.
• Durable 9-foot braided steel cable for safe and protected routing.
• 14mm threaded fitting for easy probe installation.
• LED backlighting enhances readability in low-light conditions.
• Standard 2.67-inch (68mm) mounting hole compatibility.
• Includes mounting ring for stable, secure installation.
• Comes with a 3-foot power and lighting harness.
