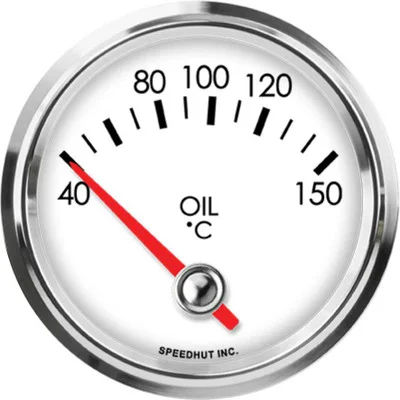

Speedhut 2-5/8″ 40-150C Oil Temp Gauge – 90° Sweep (L25-OT4-LEG)

Description

The Speedhut 2-5/8″ 40-150C Oil Temp Gauge – 90° Sweep (L25-OT4-LEG) provides accurate and immediate readings of your engine’s oil temperature. This metric gauge, with a measurement range of 40 to 150 degrees Celsius, allows you to closely monitor a critical aspect of your engine’s health and performance. The included 2-wire performance temperature sender ensures reliable data, helping you to identify potential issues before they escalate. Designed for a 2 5/8 inch (68mm) mounting hole, this gauge is a valuable addition to any vehicle where precise oil temperature monitoring is essential.

KEY FEATURES AND BENEFITS:

• Accurate Monitoring: Provides precise readings of oil temperature between 40°C and 150°C, crucial for maintaining optimal engine performance and preventing damage.
• Performance Sender Included: Comes with a 2-wire performance temperature sender, known for its accuracy and quick response time.
• Complete Wiring Included: Ships with a 3 ft power & lighting harness for LED illumination and a dedicated 2-wire cable for the temperature sensor, simplifying the installation process.
• Standard Size: The 2 5/8 inch (68mm) size is a common and versatile dimension, fitting into many standard gauge pods and mounting locations.
• Metric Measurement: Displays temperature in Celsius, the standard unit for many vehicle monitoring applications.

SPECIFICATIONS:

• Gauge Type: Temperature Gauge
• Gauge Subtype: Oil Temperature Gauge
• Temp Sender Type: 2-Wire Temp Sender (Performance)
• Range: 40-150 °C
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Standard or Metric: Metric
• Warning Light: No
• Ships With:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Speedhut Temperature Sensor
  • Temperature Gauge Wiring Harness (2-Wire Cable)

HOW TO USE:

1. Mount the Gauge: Locate a suitable position in your vehicle’s dashboard or utilize a gauge pod. Ensure the mounting hole is 2.67 inches (68mm) in diameter. Secure the gauge in place.
2. Install the Temperature Sensor: Identify an appropriate location on your engine’s oil system for the sensor. This often involves replacing the oil drain plug or using an oil filter sandwich plate adapter. Install the Speedhut temperature sensor securely.
3. Connect the Sensor Wiring: Run the provided 2-wire temperature gauge wiring harness from the installed temperature sensor to the back of the gauge. Connect the wires to the corresponding terminals on the gauge.
4. Connect the Power and Lighting Harness: Connect the 3 ft power & lighting harness to the appropriate power and ground sources in your vehicle’s electrical system. This harness will also power the gauge’s LED backlighting.
5. Verify Functionality: Once all connections are made, start your vehicle and allow the engine to warm up. Observe the gauge to ensure it is displaying the oil temperature readings accurately.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ 40-150C OIL TEMP GAUGE – 90° SWEEP (L25-OT4-LEG):

• Using the Speedhut 2-5/8″ 40-150C Oil Temp Gauge allows for proactive monitoring of your engine’s oil temperature, a critical factor in maintaining its longevity and optimal performance.
• By having a clear and accurate display of your oil’s temperature, you can identify potential overheating issues early, preventing costly engine damage.
• This gauge helps you understand when your engine has reached its ideal operating temperature, which is important for efficient driving and reduced wear.
• The inclusion of a performance sender ensures reliable readings, giving you confidence in the data being presented.

FEATURES:

• Provides a clear analog display: of oil temperature ranging from 40°C to 150°C.
• Utilizes a high-quality 2-wire performance temperature sending unit: for precise measurements.
• Designed with a standard 2 5/8 inch (68mm) diameter: for versatile mounting options.
• Displays temperature readings in the metric unit: Celsius.
• Includes a dedicated wiring harness for the temperature sensor: ensuring a proper connection.
• Comes with a separate power and lighting harness: for easy integration into your vehicle’s electrical system and illumination of the gauge face.
