Description

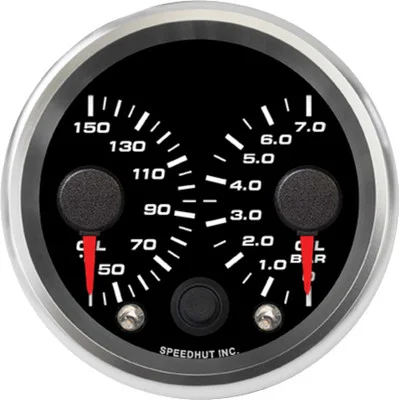

The Speedhut 2-5/8″ Dual Metric Oil Temp / Oil Bar Gauge (R25-DG11-REV) offers a comprehensive solution for monitoring two critical aspects of your engine’s health: oil temperature and oil pressure. This dual gauge presents both readings in metric units, providing precise data in an easy-to-read format. Its design incorporates user-friendly features and includes all the necessary components for installation, making it an ideal choice for automotive enthusiasts and professionals alike.
KEY FEATURES AND BENEFITS:
- Dual Monitoring: Simultaneously displays oil temperature (40-150 °C) and oil pressure (0-7.0 bar).
- Integrated Warning Light: Programmable alert for exceeding preset temperature or pressure limits.
- Standard Gauge Size: Fits standard 2-5/8 inch openings with included mounting ring for secure installation.
- LED Backlighting: Clear and bright illumination for enhanced visibility in all lighting conditions.
- Complete Installation Kit: Includes sensors and wiring harnesses for hassle-free setup.
SPECIFICATIONS:
- Gauge Type: Dual Gauge
- Combo Options: Oil Temperature and Oil Pressure
- Oil Temperature Range: 40-150 °C
- Oil Pressure Range: 0-7.0 bar
- Standard or Metric: Metric
- Size: 2 5/8 inch (66.7 mm)
- Hole Size: 2.67 inches (68 mm)
- Warning Light: Yes
- Gauge Mounting Ring: Included
- Ships With:
- Speedhut Temperature Sensor
- Temperature Gauge Wiring Harness (2-Wire Cable)
- Pressure Sensor – 100 psi
- 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
- Pressure Gauge Wiring Harness (3-Wire Cable)
HOW TO USE:
- Mount the Gauge: Secure the 2-5/8″ gauge into a compatible 2.67″ (68mm) opening using the included mounting ring.
- Connect the Temperature Sensor: Install the Speedhut temperature sensor in the designated location on your engine and connect the 2-wire harness to the gauge.
- Connect the Pressure Sensor: Install the 100 psi pressure sensor in the appropriate oil system port and connect the 3-wire harness to the gauge.
- Connect Power and Lighting: Use the 3 ft power & lighting harness to connect the gauge to power and ground. This also activates the LED backlighting.
- Program the Warning Light (Optional): Set the desired alert thresholds for oil temperature and/or oil pressure using the gauge’s interface.
BENEFITS OF USING THE SPEEDHUT 2-5/8″ DUAL METRIC OIL TEMP / OIL BAR GAUGE (R25-DG11-REV):
- Provides real-time, accurate monitoring of oil temperature and pressure.
- Helps detect engine issues early and prevent major damage.
- Metric units offer precise readings for enhanced diagnostics.
- Programmable warning light alerts you to abnormal conditions immediately.
- All-in-one kit simplifies installation and reduces setup time.
- Enhanced readability through LED backlighting ensures safety and convenience.
FEATURES:
- Displays both oil temperature and pressure in metric format simultaneously.
- Programmable LED alert for over-temp or low-pressure situations.
- Compact 2-5/8 inch size fits standard openings with ease.
- LED-lit display ensures visibility in dark environments.
- Includes all required sensors and wiring for a complete setup.
- Quick and easy installation with provided harnesses and mounting ring.
- Engineered for dependable performance and accurate readings.
