Speedhut 2-5/8″ Metric WaterTemp/Oil Pressure Dual Gauge (R25-DG5-LEG)

Description

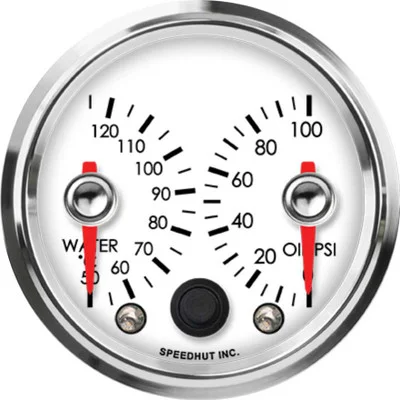

The Speedhut 2-5/8″ Metric WaterTemp/Oil Pressure Dual Gauge (R25-DG5-LEG) offers a convenient and space-saving solution for monitoring two critical aspects of your engine’s performance: water temperature and oil pressure. This single 2-5/8 inch (66mm) gauge provides real-time readings, allowing you to stay informed about your engine’s operating conditions and potentially prevent costly damage. Designed with ease of installation in mind, this kit includes all the necessary sensors and wiring to get you up and running quickly. The integrated warning light provides an immediate visual alert should either your water temperature or oil pressure fall outside of safe operating parameters.

KEY FEATURES AND BENEFITS:

• Dual Monitoring Capability: Combines water temperature and oil pressure readings into a single, compact gauge, saving valuable dashboard space.
• Metric and Standard Measurement: Displays water temperature in degrees Celsius (°C) within a range of 50-125°C, while providing oil pressure readings in PSI within a range of 0-100 psi.
• Early Warning System: Features a built-in warning light that illuminates when critical temperature or pressure thresholds are exceeded, alerting you to potential issues.
• Complete Installation Kit: Ships with all essential components, including the pressure sensor, temperature sensor, and the necessary wiring harnesses for both the pressure and temperature gauges, as well as a power and lighting harness.
• Easy Mounting: Includes a gauge mounting ring, simplifying the installation process into a standard 2.67-inch (68mm) diameter hole.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Water Temperature and Oil Pressure
• Water Temperature Range: 50-125 °C
• Oil Pressure Range: 0-100 psi
• Standard or Metric: Metric (Water Temperature), Standard (Oil Pressure)
• Size: 2 5/8 inch
• Hole Size: 2.67 inches (68mm)
• Warning Light: Yes
• Gauge Mounting Ring: Included
• Ships With:
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • Pressure Sensor – 100 psi
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Speedhut Temperature Sensor

HOW TO USE:

1. Mount the Gauge: Locate a suitable 2.67-inch (68mm) diameter hole in your desired dashboard location. Insert the gauge and secure it using the included mounting ring.
2. Install the Pressure Sensor: Identify the appropriate port on your engine for oil pressure measurement. Thread in the included 100 psi pressure sensor.
3. Connect the Pressure Sensor Wiring: Connect the 3-wire cable from the pressure gauge to the terminals on the installed pressure sensor.
4. Install the Temperature Sensor: Locate the appropriate port on your engine’s cooling system for temperature measurement. Thread in the included Speedhut temperature sensor.
5. Connect the Temperature Sensor Wiring: Connect the 2-wire cable from the temperature gauge to the terminals on the installed temperature sensor.
6. Connect the Power and Lighting Harness: Connect the 3 ft power and lighting harness to the designated terminals on the back of the gauge. Ensure you connect the power wire to a switched 12V source, the ground wire to a suitable ground, and the lighting wire to your vehicle’s lighting circuit if you desire the gauge to illuminate with your other lights.
7. Verify Connections: Double-check all wiring connections to ensure they are secure and correct according to the wiring diagrams (refer to any included documentation for specific wiring details).
8. Test the Gauge: Start your vehicle and observe the gauge readings for both water temperature and oil pressure to confirm proper functionality. Check if the warning light activates under abnormal conditions (if applicable and testable).

BENEFITS OF USING THE SPEEDHUT 2-5/8″ METRIC WATERTEMP/OIL PRESSURE DUAL GAUGE (R25-DG5-LEG):

• Offers a consolidated view of two critical engine parameters for easier and more frequent monitoring.
• Helps in the early detection of problems such as overheating or low oil pressure, reducing the risk of major engine damage.
• Includes all necessary sensors and wiring, simplifying installation for DIY enthusiasts.
• Built-in warning light offers immediate visual alerts for abnormal readings.
• Compact design maximizes dashboard space while maintaining visibility and accuracy.

FEATURES:

• Integrated Dual Display: Presents both water temperature and oil pressure readings simultaneously for at-a-glance monitoring.
• Dedicated Sensors Included: Comes with specific sensors calibrated for accurate measurement of both temperature and pressure.
• Pre-Wired Harnesses: Includes separate wiring harnesses designed for easy connection to the respective sensors and power source.
• Illuminated Display Option: Features a power and lighting harness for connection to your vehicle’s lighting system, enhancing visibility at night.
• Direct Fit Installation: Designed with a standard 2 5/8 inch size and includes a mounting ring for straightforward installation into common gauge pods or dashboard openings.
• Visual Alert System: Equipped with a warning light to immediately indicate abnormal engine conditions, improving driver awareness.
