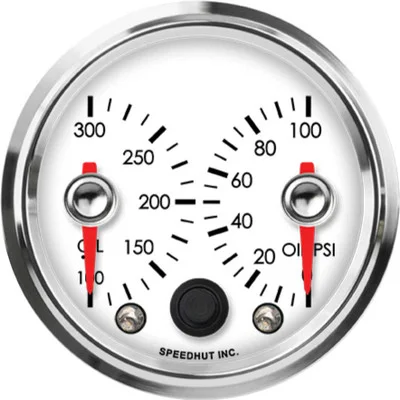

Speedhut 2-5/8″ Oil Temp / Oil Pressure Dual Gauge (R25-DG6-LEG)

Description

The Speedhut 2-5/8″ Oil Temp / Oil Pressure Dual Gauge (R25-DG6-LEG) is a comprehensive instrument designed to provide essential readings for your engine’s oil temperature and pressure. This single, compact gauge allows you to monitor two critical parameters simultaneously, offering valuable insight into your engine’s health and performance. Featuring a timeless “Classic” design, it seamlessly integrates into a variety of vehicle interiors. The gauge is equipped with a warning light for immediate notification of potential issues, ensuring you can take prompt action. Installation is made straightforward with the included mounting ring, wiring harnesses, and necessary sensors.

KEY FEATURES AND BENEFITS:

• Dual Functionality: Displays both oil temperature (ranging from 100 to 300 degrees Fahrenheit) and oil pressure (ranging from 0 to 100 pounds per square inch) in one convenient 2-5/8 inch gauge.
• Clear and Easy Monitoring: Allows for simultaneous tracking of two vital engine metrics, providing a comprehensive overview of engine lubrication conditions.
• Integrated Warning Light: Features a built-in warning light to alert the driver to potential out-of-range readings, promoting proactive maintenance and preventing potential engine damage.
• Classic Aesthetic: The “Classic” design ensures the gauge complements a wide range of interior styles, offering a traditional and clean look.
• Complete Installation Kit: Ships with all necessary components, including wiring harnesses, pressure and temperature sensors, and a mounting ring, simplifying the installation process.

SPECIFICATIONS:

• Gauge Type: Dual Gauge
• Combo Options: Oil Temperature and Oil Pressure
• Oil Temperature Range: 100-300 °F
• Oil Pressure Range: 0-100 psi
• Units: Standard (Fahrenheit and PSI)
• Size: 2 5/8 inch (67mm)
• Hole Size: 2.67 inches (68mm)
• Warning Light: Yes
• Gauge Mounting Ring: Included
• Included Components:
• Pressure Gauge Wiring Harness: 3-Wire Cable
• 3 ft Power & Lighting Harness: For LED Lit Gauges and Clocks
• Pressure Sensor: 100 psi
• Temperature Gauge Wiring Harness: 2-Wire Cable
• Speedhut Temperature Sensor: Included

HOW TO USE:

1. Mount the Gauge: Secure the 2-5/8″ Classic Dual Gauge in a suitable 2.67-inch (68mm) diameter opening in your vehicle’s dashboard or instrument panel using the included mounting ring.
2. Connect the Pressure Sensor: Install the provided pressure sensor at the appropriate port on your engine’s oil system. Connect the 3-wire pressure gauge wiring harness between the pressure sensor and the back of the gauge.
3. Connect the Temperature Sensor: Install the included temperature sensor in a suitable location on your engine where oil temperature can be accurately measured. Connect the 2-wire temperature gauge wiring harness between the temperature sensor and the back of the gauge.
4. Connect Power and Lighting: Use the 3 ft power & lighting harness to connect the gauge to a suitable power source in your vehicle. This harness will also power the gauge’s illumination and the warning light. Ensure proper grounding.
5. Verify Readings: Once all connections are secure, start your vehicle and observe the gauge readings to ensure the oil temperature and pressure are being displayed correctly. Check that the warning light functions as expected.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ OIL TEMP / OIL PRESSURE DUAL GAUGE (R25-DG6-LEG):

• Early Problem Detection: By continuously monitoring oil temperature and pressure, you can identify potential issues like overheating or low oil pressure before they lead to significant engine damage.
• Enhanced Engine Longevity: Consistent monitoring allows for timely maintenance and adjustments, contributing to the overall health and lifespan of your engine.
• Improved Performance Awareness: Understanding your engine’s oil temperature and pressure under various driving conditions can provide valuable insights into its performance characteristics.
• Streamlined Monitoring: The dual functionality of this gauge reduces clutter on your dashboard compared to installing separate gauges for oil temperature and pressure.
• Reliable and Accurate Readings: Designed for precision, this Speedhut gauge provides accurate data you can trust.

FEATURES:

• Simultaneously displays critical oil temperature and pressure readings.
• Features a traditional “Classic” gauge face design.
• Equipped with an integrated LED warning light for immediate alerts.
• Utilizes dedicated wiring harnesses for both pressure and temperature sensors.
• Includes high-quality pressure and temperature sensors specifically designed for accurate measurement.
• Comes with a spin-lock mounting ring for secure and straightforward installation.
• Designed for a standard 2-5/8 inch (67mm) mounting hole.
