Speedhut 2-5/8″ Programmable Fuel Level Gauge w/ Warning (R25-FL1-REV)

Description

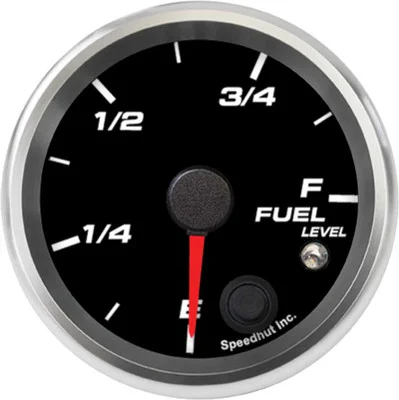

The Speedhut 2-5/8″ Programmable Fuel Level Gauge w/ Warning (R25-FL1-REV) provides accurate and reliable monitoring of your vehicle’s fuel level. Designed for broad compatibility, this gauge works seamlessly with fuel level sensors ranging from 0 to 300 ohms. Its programmable nature includes built-in preset ranges for swift installation and a manual calibration option for customized sensor values, ensuring precise readings for a wide array of fuel systems. The gauge features a clear Empty to Full display in standard units and fits a common 2-5/8 inch mounting hole. For added safety, an integrated warning light illuminates when your fuel level drops low, providing timely alerts. Utilizing a stepper motor, the needle movement is smooth and accurate, offering a dependable indication of your remaining fuel. This gauge is engineered for flexibility and consistent performance in both custom and high-demand automotive applications.

KEY FEATURES AND BENEFITS:

• Wide Sensor Compatibility: Programmable to function effectively with fuel level sensors ranging from 0 to 300 ohms, accommodating a vast majority of standard sensors.
• Simplified Setup: Features built-in preset ohm ranges, allowing for a quick and straightforward initial setup process.
• Custom Calibration: Offers a manual calibration option, providing the flexibility to fine-tune readings for specific or non-standard fuel level sensors.
• Precise Indication: Employs a stepper motor to drive the needle, resulting in smooth and highly accurate fuel level readings.
• Low Fuel Alert: Equipped with a built-in warning light that activates when the fuel level reaches a low threshold, prompting the driver to refuel.
• Versatile Application: Compatible with a diverse range of fuel sender types, making it suitable for various vehicles and fuel system configurations.
• User-Friendly Configuration: Designed to be easy to configure, minimizing installation complexities.
• Reliable Performance: Built to deliver consistent and dependable fuel level monitoring in demanding conditions.

SPECIFICATIONS:

• Gauge Type: Fuel Level Gauge
• Fuel Level Signal Type: 0–300 ohms
• Size: 2 5/8 inch
• Range: Empty (E) – Full (F)
• Units: Standard
• Hole Size: 2.67 inches (68mm)
• Warning Light: Yes

HOW TO USE:

• Installation: Mount the Speedhut Fuel Level Gauge in a 2.67-inch (68mm) diameter opening in your vehicle’s dashboard or instrument panel.
• Wiring: Connect the gauge to your vehicle’s power source, ground, and the wire from your fuel level sender unit according to the provided wiring diagram.
• Sensor Selection (Preset): If your fuel level sender has a common resistance range (within 0–300 ohms), consult the gauge’s instructions to select the corresponding built-in preset range. This will automatically calibrate the gauge for your sensor.
• Manual Calibration (Custom Sensors): If your fuel level sender has a unique resistance range, follow the manual calibration procedure outlined in the gauge’s instructions. This typically involves setting the gauge to read “Empty” when the tank is empty (or at its lowest known level) and “Full” when the tank is full (or at its highest known level).
• Verification: After wiring and calibration, start your vehicle and observe the fuel level gauge as the fuel level changes to ensure accurate readings. The warning light should illuminate when the fuel level drops to a low point.

BENEFITS OF USING THE SPEEDHUT 2-5/8″ PROGRAMMABLE FUEL LEVEL GAUGE W/ WARNING (R25-FL1-REV):

• Broad compatibility with 0–300 ohm fuel level sensors removes the challenge of finding a matching sender.
• Preset resistance options simplify setup for standard applications.
• Manual calibration enables accurate readings for unique fuel systems.
• Smooth, precise needle movement ensures dependable fuel level indication.
• Low fuel warning light helps prevent unexpected fuel depletion.
• Easy configuration and robust design support a wide range of automotive uses.

FEATURES:

• Accommodates a wide spectrum of fuel tank sensor resistances.
• Offers quick configuration through pre-configured resistance settings.
• Allows for tailored adjustment to match specific sensor outputs.
• Delivers fluid and precise needle movement for easy reading.
• Provides a visual cue when fuel reserves are low.
• Designed to integrate with diverse automotive fuel delivery systems.
• Simple installation and setup procedures.
• Engineered for consistent operation in various conditions.
