Description

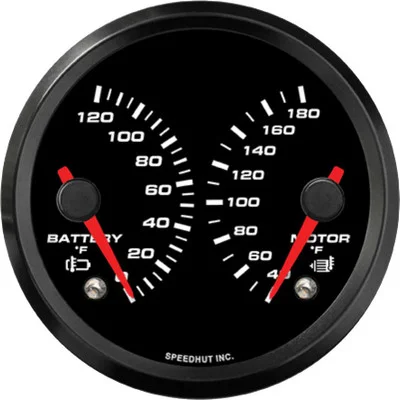

The Speedhut 3-3/8″ EV Battery/Motor Temp Gauge w/ Warning (FOR3-DG4-EV) is a compact and efficient instrument engineered specifically for electric vehicles. This gauge provides simultaneous, real-time monitoring of two critical temperature parameters: your EV’s battery temperature (ranging from 0 to 120 degrees Fahrenheit) and motor temperature (ranging from 40 to 180 degrees Fahrenheit). Designed for seamless integration with your vehicle’s Controller Area Network (CAN-Bus) at a 500K baud rate, this gauge delivers accurate and dependable data directly from your EV’s systems. Equipped with integrated warning lights, it offers an immediate visual alert should your battery or motor temperatures exceed safe operating thresholds. This dual functionality maximizes your dashboard space while providing essential insights into your electric powertrain’s thermal performance, helping you to optimize efficiency and potentially prevent damage. The gauge is built with quality components and designed for straightforward installation using the included harnesses.
KEY FEATURES AND BENEFITS:
- Dual functionality: Monitors both battery and motor temperatures in a single compact unit.
- CAN-Bus connectivity: Provides real-time data with high-speed 500K baud rate communication.
- Warning system: Alerts when battery exceeds 100°F or motor exceeds 160°F to help prevent damage.
- Dashboard efficiency: Conserves space with a 3-3/8″ (85mm) dual-display unit.
- Complete installation kit: Includes EV CAN Harness, EV CAN Jumper Harness, and Power & Lighting Harness.
- Easy compatibility: Fits into a standard 3.33″ (85mm) hole for hassle-free mounting.
SPECIFICATIONS:
- Gauge Type: Dual
- Signal Type: CAN-Bus (500K baud rate)
- Combo Options: Battery Temperature and Motor Temperature
- Battery Temperature Range: 0-120°F
- Motor Temperature Range: 40-180°F
- Size: 3 3/8 inch (85mm)
- Hole Size: 3.33 inches (85mm)
- Units: Standard (Fahrenheit)
- Battery Temp Warning: Activates above 100°F
- Motor Temp Warning: Activates above 160°F
- Included: EV CAN Jumper Harness, 3 ft Power & Lighting Harness, EV CAN Harness
HOW TO USE:
- Connect the EV CAN Harness: Plug the provided EV CAN Harness into the appropriate port on your electric vehicle’s CAN-Bus system. Refer to your vehicle’s service manual for the exact location and connection procedure.
- Connect the EV CAN Jumper Harness: Use the EV CAN Jumper Harness to connect the Speedhut gauge to the EV CAN Harness that you connected in the previous step.
- Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the designated terminals on the Speedhut gauge.
- Connect Power: Connect the power wire (typically red) from the Power & Lighting Harness to a 12V power source in your vehicle that is switched with the ignition.
- Connect Ground: Connect the ground wire (typically black) from the Power & Lighting Harness to a suitable ground point on your vehicle’s chassis.
- Connect Lighting (Optional): If desired, connect the lighting wire (often orange or similar) from the Power & Lighting Harness to your vehicle’s lighting circuit so the gauge illuminates with your other instruments.
- Mount the Gauge: Insert the Speedhut gauge into a 3.33″ (85mm) diameter hole in your dashboard. Secure it using the provided mounting hardware.
- Verify Functionality: Once all connections are made, turn on your vehicle’s ignition. The gauge should power on and display the real-time battery and motor temperatures. Check that the warning lights illuminate when the respective temperatures exceed the specified thresholds.
BENEFITS OF USING THE SPEEDHUT 3-3/8″ EV BATTERY/MOTOR TEMP GAUGE W/ WARNING (FOR3-DG4-EV):
- Real-time monitoring: Constant awareness of battery and motor temperature ensures safe and efficient operation.
- Early detection: Built-in warning system helps prevent overheating-related damage and costly repairs.
- Space-efficient design: Combines two critical temperature readings in a single compact gauge.
- Seamless integration: Connects to the EV’s CAN-Bus system for precise, dependable data without the need for extra sensors.
- Proactive driving: Allows you to adjust habits based on temperature data to maintain optimal performance and longevity.
FEATURES:
- Simultaneous display of battery and motor temperatures in a single unit.
- Direct data acquisition via CAN-Bus (500K baud rate) for precise readings.
- Dedicated warning indicators illuminate for high battery and motor temperatures.
- Designed to fit standard 3 3/8 inch (85mm) dashboard openings.
- Straightforward connection using the included EV-specific harnesses.
- Provides temperature readings in familiar Fahrenheit units.
- Contributes to informed driving and proactive EV maintenance.
- Helps optimize EV performance and potentially extend component lifespan.
- Offers a clean and integrated look on your vehicle’s dashboard.
