Speedhut 3-3/8″ EV Orion 0-80C Motor Temp/Batt Lev Gauge (FOR3-DG3-EV)

Description

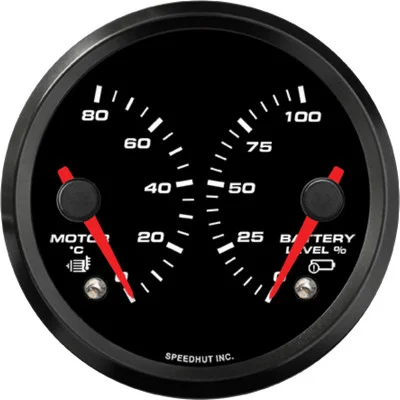

The Speedhut 3-3/8″ EV Orion 0-80C Motor Temp/Batt Lev Gauge (FOR3-DG3-EV) is a compact yet powerful instrument designed to provide electric vehicle owners with essential real-time data. This dual-function gauge seamlessly integrates into your EV’s CAN-Bus system, offering simultaneous monitoring of critical parameters, allowing you to efficiently assess and optimize your vehicle’s performance. Its clear display and integrated warning system ensure you remain informed and in control, adding both functionality and a high-tech aesthetic to your electric vehicle’s interior.

KEY FEATURES AND BENEFITS:

• This dual gauge: Combines motor temperature and battery level (SOC) in one compact unit.
• Real-time monitoring: Displays 0-80°C motor temperature and 0-100% SOC simultaneously.
• CAN-Bus integration: Operates on a 500K baud rate system for precise and up-to-date readings.
• Warning lights: Alerts when motor temperature exceeds 70°C or SOC drops below 15%.
• Standard size: Fits in a 3-3/8 inch (85mm) gauge opening for universal compatibility.
• Functional design: Adds modern aesthetic and critical data visualization to your dashboard.

SPECIFICATIONS:

• Gauge Type: Dual
• Signal Type: CAN-Bus (500K baud rate)
• Combo Options: Motor Temp and Battery Level/SOC
• Motor Temperature Range: 0-80°C
• Battery Level/SOC Range: 0-100%
• Size: 3 3/8 inch (85mm)
• Hole Size: 3.33 inches (85mm)
• Units: Metric (°C for temperature)
• Motor Temp Warning: Activates above 70°C
• Battery Level Warning: Activates below 15%
• Included:
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• EV CAN Jumper Harness
• EV CAN Harness

HOW TO USE:

1. Connect the Power and Lighting Harness: Attach the provided 3 ft power and lighting harness to the designated terminals on the back of the Speedhut EV Dual Gauge. This harness will power the gauge’s operation and the LED illumination.
2. Connect the EV CAN Harness: Connect the EV CAN harness to the appropriate CAN-Bus port in your electric vehicle. Ensure the connection is secure and follows your vehicle’s wiring diagram.
3. Utilize the EV CAN Jumper Harness (if needed): The EV CAN jumper harness may be required depending on your vehicle’s specific CAN-Bus configuration. Refer to your EV’s documentation or Speedhut’s instructions for proper implementation.
4. Mount the Gauge: Insert the 3-3/8″ gauge into an 85mm (3.33″) diameter mounting hole in your dashboard or gauge pod. Secure it from the back using the included mounting hardware (if any).
5. Monitor Readings: Once installed and connected, the gauge will display real-time readings for motor temperature (in Celsius) and battery state of charge (as a percentage).
6. Observe Warning Lights: Pay attention to the integrated warning lights. The motor temperature light will illuminate if the motor temperature exceeds 70°C, and the battery level light will turn on if the battery charge drops below 15%.

BENEFITS OF USING THE SPEEDHUT 3-3/8″ EV ORION 0-80C MOTOR TEMP/BATT LEV GAUGE (FOR3-DG3-EV):

• Provides critical real-time insights into motor temperature and battery SOC.
• Helps prevent motor overheating and unexpected power loss.
• Enhances driving safety with integrated visual warnings.
• Delivers high-speed and accurate data through CAN-Bus integration.
• Saves dashboard space with a dual-purpose compact design.
• Supports better decision-making for EV performance and maintenance.

FEATURES:

• Displays motor temperature (0-80°C) and battery SOC (0-100%) in one unit.
• Uses 500K baud CAN-Bus communication for reliable data.
• Standard 3-3/8 inch (85mm) size fits most gauge mounts.
• Includes visual warnings for high motor temp and low battery SOC.
• Enhances dashboard aesthetics with a modern Orion-series design.
• Includes all required harnesses for quick and easy installation.
• Provides metric (Celsius) temperature readings for global consistency.
