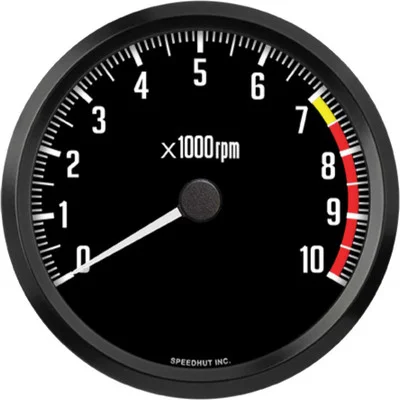

Speedhut 4-1/2″ 10K RPM Tachometer – Datsun Z Design (L45-TC4-DATZ)

Description

The Speedhut 4-1/2″ 10K RPM Tachometer – Datsun Z Design (L45-TC4-DATZ) is an essential instrument for drivers looking to closely monitor their engine’s performance. This gauge provides accurate, real-time readings of your engine’s revolutions per minute (RPM), allowing for optimized engine responsiveness and efficiency. Designed with a classic Datsun Z aesthetic, it seamlessly integrates into vehicles with a similar style. Its compatibility with a wide range of engines and straightforward installation make it a valuable addition to any performance-focused vehicle.

KEY FEATURES AND BENEFITS:

• Accurate engine speed display: Displays engine speed up to 10,000 RPM.
• Broad compatibility: Works with standard spark plug ignition systems in 1 to 12 cylinder engines.
• Easy mounting: Designed for dash mounting with a 4.250″ (108mm) hole requirement.
• Signal flexibility: Supports tachometer signals over one volt and 1/2 to 6 pulses per revolution.
• Simple installation: Includes mounting ring for quick and secure setup.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Signal Type: Standard spark plug ignition systems
• Compatibility: 1-12 cylinder engines
• Range: 0-10,000 RPM (10K RPM)
• Size: 4 1/2 inch diameter
• Hole Size: 4.250 inches (108mm)
• Mounting Style: Dash Mount
• Included: Gauge Mounting Ring, 3 ft Power & Lighting Harness, 8 ft Tachometer Harness

HOW TO USE:

1. Prepare the Mounting Location: Choose a suitable location on your vehicle’s dashboard and ensure there is enough clearance behind it for the gauge and wiring.
2. Cut the Mounting Hole: Using the specified 4.250″ (108mm) measurement, carefully cut the hole in your dashboard.
3. Connect the Wiring Harnesses:
   • Connect the 3 ft Power & Lighting Harness to a suitable power source and ground in your vehicle, following your vehicle’s wiring diagram. This harness also provides power for the gauge’s illumination.
   • Connect the 8 ft Tachometer Harness to the tachometer signal output from your engine’s ignition system. This is typically a single wire connected to the negative side of the ignition coil or an equivalent tachometer output.
4. Mount the Gauge: Insert the tachometer into the prepared hole in the dashboard. Secure it from the back using the included Gauge Mounting Ring.
5. Test the Gauge: Start your engine and observe the tachometer reading to ensure it is functioning correctly and displaying the engine’s RPM.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ 10K RPM TACHOMETER – DATSUN Z DESIGN (L45-TC4-DATZ):

• Precise RPM monitoring: Provides immediate feedback on engine performance.
• Enhanced control: Enables more accurate driving decisions and prevents engine over-revving.
• Classic styling: Complements the Datsun Z interior design.
• Effortless integration: Installs easily with included components and standard wiring.

FEATURES:

• Displays engine speed up to 10,000 revolutions per minute.
• Designed to work with standard spark plug ignition systems.
• Compatible with a broad range of engines, from 1 to 12 cylinders.
• Requires a dash mounting hole of 4.250 inches (108mm).
• Accommodates tachometer signals exceeding one volt.
• Functions effectively with engines producing between 1/2 and 6 pulses per revolution.
• Includes wiring harnesses for power and tachometer signal connection.
• Comes with a mounting ring for secure and easy installation.
• Features a design that complements the aesthetics of Datsun Z series vehicles.
