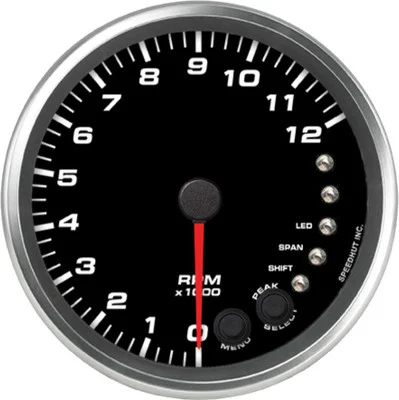

Speedhut 4-1/2″ 12K RPM ShiftLight Dash Mount Tachometer (R45-TC5-REV)

Description

The Speedhut 4-1/2″ 12K RPM ShiftLight Dash Mount Tachometer (R45-TC5-REV) provides precise engine speed monitoring up to 12,000 revolutions per minute. Designed for performance applications, this gauge features an integrated shift light to help drivers optimize gear changes for maximum efficiency and speed. Its straightforward dash mount design ensures secure and convenient placement within the vehicle’s interior. Compatibility with standard spark plug ignition systems across a broad range of 1 to 12 cylinder engines makes it a versatile choice for many vehicles.

KEY FEATURES AND BENEFITS:

• Accurate RPM Measurement: Reliably displays engine speed up to 12,000 RPM.
• Integrated Shift Light: Features an internal light to indicate optimal gear shifting points, enhancing performance.
• Wide Compatibility: Works with 1 to 12 cylinder engines utilizing standard spark plug ignition systems.
• Convenient Mounting: Designed for easy and secure dash mounting.
• Complete Installation Kit: Ships with all necessary wiring harnesses and a mounting ring for immediate setup.

SPECIFICATIONS:

• Standard or Metric: Standard
• Gauge Type: Tachometer
• Tachometer Signal Type: Standard spark plug ignition systems
• Compatibility: 1-12 cylinder
• Range: 12,000 RPM
• Size: 4 1/2 inch
• Hole Size: 4.250 inches (108mm)
• Internal Shift Light: Yes
• Mount Style: Dash Mount
• Gauge Mounting Ring: Included
• Ships With:
  • 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Prepare the Mounting Location: Choose a suitable flat surface on your vehicle’s dashboard where the 4.250-inch (108mm) diameter hole can be made.
2. Create the Mounting Hole: Carefully cut a 4.250-inch (108mm) diameter hole in the chosen location.
3. Position the Tachometer: Insert the Speedhut tachometer into the newly created hole in the dashboard.
4. Secure with Mounting Ring: From the back of the dashboard, slide the included gauge mounting ring over the back of the tachometer and tighten it to secure the gauge firmly in place.
5. Connect the Power Harness: Connect the 3 ft Power & Lighting Harness. Typically, this involves connecting the power wire to a switched +12V source, the ground wire to a suitable ground point, and the lighting wire to your vehicle’s dashboard lighting circuit (if desired for illumination).
6. Connect the Tachometer Signal Harness: Connect the 8 ft Tachometer Harness to the tachometer. The other end of this harness needs to be connected to the tachometer signal source in your vehicle’s engine. This is typically the negative (-) side of the ignition coil or a designated tachometer output from your engine control unit (ECU), depending on your vehicle’s specific wiring.
7. Final Checks and Testing: Once all connections are made, carefully check all wiring to ensure secure and correct connections. Reconnect your vehicle’s battery and start the engine to test the tachometer’s functionality and the shift light. You may need to calibrate the tachometer for the correct number of cylinders if it doesn’t read accurately initially (refer to your vehicle’s service manual for the correct setting).

BENEFITS OF USING THE SPEEDHUT 4-1/2″ 12K RPM SHIFTLIGHT DASH MOUNT TACHOMETER (R45-TC5-REV):

• Offers a clear and immediate view of your engine’s revolutions per minute, a crucial metric for performance monitoring and vehicle health.
• The integrated shift light provides a visual cue at optimal engine speeds, allowing for precise gear changes that can improve acceleration, fuel efficiency, and overall driving performance.
• Its compatibility with a wide range of engines makes it a versatile upgrade for various vehicles.
• The included wiring and mounting hardware simplify the installation process, getting you up and running quickly.

FEATURES:

• Displays engine speed in standard units up to 12,000 RPM for precise monitoring.
• Incorporates an internal shift light to visually indicate the ideal moment for gear changes.
• Designed to function with standard spark plug ignition systems, a common type in many vehicles.
• Suitable for engines with 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, or 12 cylinders, offering broad application.
• Features a 4 1/2 inch gauge face for easy readability.
• Requires a 4.250-inch (108mm) diameter opening for mounting into the vehicle’s dashboard.
• Includes a dedicated mounting ring to securely fasten the gauge to the dash.
• Comes with an 8-foot tachometer signal wire harness with a 2-pin connector for straightforward signal connection.
• Supplied with a 3-foot power and lighting wire harness for easy electrical connections.
