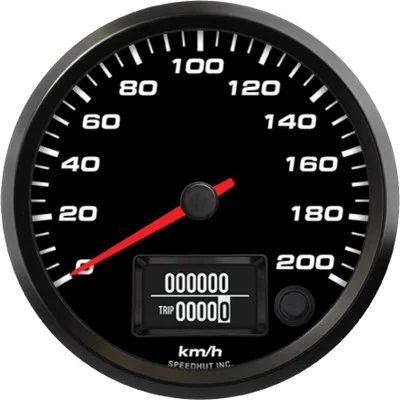

Speedhut 4-1/2″ 200 km/h EV Speedometer Gauge (FAE45-S3-EV)

Description

The Speedhut 4-1/2″ 200 km/h EV Speedometer Gauge (FAE45-S3-EV) is a specialized instrument designed to provide accurate speed readings for electric vehicles. Engineered for seamless integration with EV CAN-Bus systems, particularly those utilizing AEM electronic control units (ECUs), this gauge offers a modern and reliable solution for monitoring your EV’s speed performance. By directly communicating with the vehicle’s ECU, it eliminates the need for traditional speed sensors, ensuring precise and real-time data. Its straightforward installation process and included wiring harnesses make it a user-friendly upgrade for any electric vehicle project.

KEY FEATURES AND BENEFITS:

• Speed Display Range: Displays speeds up to 200 km/h for comprehensive speed monitoring.
• CAN-Bus Integration: Operates at a 500K baud rate for accurate and responsive data transfer.
• ECU Compatibility: Designed to work with AEM and other EV CAN-Bus systems.
• Sensor-Free Operation: Eliminates the need for external speed sensors by reading data directly from the ECU.
• Optional Indicators: Supports 12 Volt activated turn signal and high beam indicators.
• Installation Accessories: Includes EV CAN Jumper Harness, EV CAN Harness, and 3 ft Power & Lighting Harness for simplified setup.

SPECIFICATIONS:

• Gauge Type: Speedometer
• Signal Type: CAN-Bus (500K baud rate)
• Range: 0 – 200 km/h
• Size: 4 1/2 inch
• Hole Size: 4.230 inches (108mm)
• Units: Metric (km/h)
• Optional Indicators: 12 Volt Activated Turn Signals, High Beam
• Included: EV CAN Jumper Harness, 3 ft Power & Lighting Harness, EV CAN Harness

HOW TO USE:

1. Connect the EV CAN Harness: Plug the provided EV CAN Harness into the appropriate port on your Speedhut gauge.
2. Connect to the EV CAN-Bus: Use the EV CAN Jumper Harness to connect the gauge to the EV’s CAN-Bus network (CAN high and CAN low wires at 500K baud rate).
3. Connect Power and Lighting: Wire the 3 ft Power & Lighting Harness to a suitable 12V power source and ground to power the gauge and illumination.
4. Optional Indicator Wiring: Connect the 12 Volt activated turn signal and high beam indicator wires to your vehicle’s respective outputs if needed.
5. Mount the Gauge: Secure the 4-1/2″ speedometer into a 4.230″ (108mm) opening on your dashboard or panel.
6. Verify Functionality: Turn on your EV and check that the gauge is displaying accurate speed readings from the ECU.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ 200 KM/H EV SPEEDOMETER GAUGE (FAE45-S3-EV):

• Offers precise and dependable speed monitoring specifically for electric vehicles.
• Removes reliance on traditional speed sensors, reducing complexity and error potential.
• Compatible with AEM and other EV CAN-Bus systems for seamless integration.
• Included harnesses ensure an efficient and user-friendly installation process.
• Optional turn signal and high beam inputs add useful functionality to the gauge.
• Large 4-1/2″ display offers excellent readability for improved driver awareness.

FEATURES:

• 200 km/h Metric Display: Clear and easy-to-read speed representation.
• EV CAN Jumper Harness: Allows quick connection to the vehicle CAN-Bus.
• EV CAN Harness: Ensures stable and secure data transmission.
• 3 ft Power & Lighting Harness: For simple wiring and LED backlight operation.
• Turn Signal Inputs: Accepts 12V signals for blinkers.
• High Beam Input: Supports 12V high beam signal input.
• Standard 4-1/2″ Mounting: Fits most dashboards with a 108mm hole.
