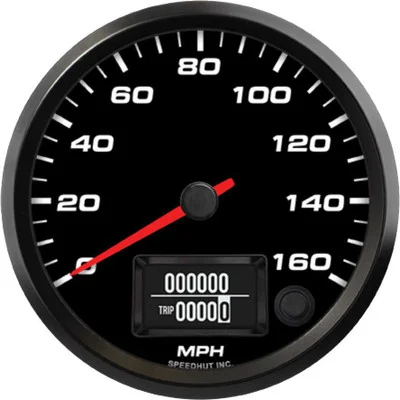

Speedhut 4-1/2″ EV AEM 160mph Speedometer Gauge (FAE45-S2-EV)

Description

The Speedhut 4-1/2″ EV AEM 160mph Speedometer Gauge (FAE45-S2-EV) is a specialized instrument designed to provide accurate speed readings for electric vehicles. This gauge seamlessly integrates with your EV’s existing CAN-Bus system, operating at a 500K baud rate, to directly receive speed data from the electronic control unit (ECU). This eliminates the complexity and potential inaccuracies of traditional speed sensors. Installation is straightforward, allowing for easy integration into your EV’s electrical system. For added functionality, optional turn signal and high beam indicators (activated by a 12 Volt signal) can be incorporated. This speedometer is a reliable tool for monitoring your electric vehicle’s speed performance with precision.

KEY FEATURES AND BENEFITS:

• Precise Data Acquisition: Receives real-time speed readings directly from the EV’s ECU over CAN-Bus at 500K baud.
• Sensor-Free Operation: Eliminates the need for traditional speed sensors, reducing installation complexity and error sources.
• Clear Display: Large 4-1/2 inch face with a 0–160 MPH scale ensures easy visibility.
• Optional Indicators: Accepts 12V activated input for turn signal and high beam indication integration.
• Complete Wiring: Includes EV CAN Harness, Jumper Harness, and 3 ft Power & Lighting Harness for simplified connection.

SPECIFICATIONS:

• Gauge Type: Speedometer
• Signal Type: CAN-Bus (500K baud rate)
• Range: 160 MPH
• Size: 4 1/2 inch
• Hole Size: 4.230″ (108mm)
• Standard or Metric: Standard
• Optional Indicators: Turn Signals (12 Volt Activated), High Beam (12 Volt Activated)
• Ships With: EV CAN Harness, EV CAN Jumper Harness, 3 ft Power & Lighting Harness

HOW TO USE:

1. Connect the EV CAN Harness: Plug the provided EV CAN Harness into the appropriate port on the Speedhut EV Speedometer Gauge.
2. Connect the EV CAN Jumper Harness: Connect to your EV’s CAN-Bus system ensuring proper alignment with the 500K baud network.
3. Connect the Power and Lighting Harness: Attach the 3 ft harness to the gauge, connect to a 12V source, and wire optional indicators if needed.
4. Mount the Gauge: Insert the gauge into a 4.230″ (108mm) hole and secure with suitable hardware.
5. Verify Functionality: Power on your EV and confirm the speedometer is accurately reading data and optional indicators function correctly.

BENEFITS OF USING THE SPEEDHUT 4-1/2″ EV AEM 160MPH SPEEDOMETER GAUGE (FAE45-S2-EV):

• Delivers precise speed readings without the need for mechanical sensors.
• Reduces installation time and complexity by using a direct CAN-bus connection.
• Enhances dashboard visibility with a large and readable display face.
• Offers integration of critical turn and high beam indicators for added driving awareness.
• Ships with all required wiring for convenient installation into EV systems.

FEATURES:

• Direct communication with EV’s CAN-Bus (500K baud).
• Receives speed data straight from the vehicle’s ECU.
• No requirement for traditional speed sensors.
• Simple integration into the EV’s CAN network.
• Large and clear 4 1/2 inch display for easy reading.
• Optional 12 Volt activated turn signal indicators.
• Optional 12 Volt activated high beam indicator.
• Includes dedicated EV CAN harness.
• Comes with an EV CAN jumper harness for connection.
• Supplied with a 3 ft power and lighting harness for LED illumination and clocks.
