Speedhut 4-1/2″ Quad Water Temp/Volts/Oil PSI/Fuel Level (R45-QG2-REV)

Description

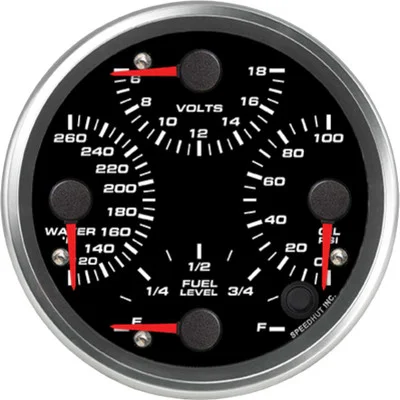

Speedhut 4-1/2″ Quad Water Temp/Volts/Oil PSI/Fuel Level (R45-QG2-REV) is a comprehensive instrument designed to provide drivers with immediate and accurate readings of four critical vehicle systems: water temperature, voltage, oil pressure, and fuel level. This single, integrated unit streamlines dashboard monitoring, offering a clean and efficient way to stay informed about your vehicle’s health. By consolidating these essential functions, the quad gauge saves valuable dashboard space and simplifies the overall instrument panel layout. It comes equipped with necessary sensors for oil pressure and water temperature, along with the required wiring harnesses for a relatively straightforward installation process. The inclusion of a warning light adds an extra layer of security, alerting drivers to potential issues.

KEY FEATURES AND BENEFITS:

• Precise Monitoring: Offers accurate readings of water temperature, oil pressure, voltage, and fuel level, ensuring comprehensive vehicle health assessment.
• Integrated Warning Light: Provides a visual alert if any system falls outside of the normal operating range, offering added security and awareness.
• Space-Saving Design: Combines four essential vehicle system readings into a single, compact 4-1/2″ gauge, maximizing dashboard space.
• Easy Installation: Includes sensors for oil pressure and water temperature, along with necessary wiring harnesses, making the installation process relatively simple.
• Broad Compatibility: Works with common fuel level sensors and a 6-18 volt electrical system, ensuring compatibility with a variety of vehicles.

SPECIFICATIONS:

• Gauge Type: Quad Gauge (Water Temperature, Volts, Oil Pressure, Fuel Level)
• Size: 4 1/2 inches (diameter)
• Hole Size Required: 4.20 inches (107mm)
• Voltage Range: 6-18 volts
• Water Temperature Range: 120-260 °F
• Oil Pressure Range: 0-100 psi
• Fuel Level Compatibility: Designed for fuel level sensors with a resistance of 300 ohms or less. (Fuel Level Sensor Not Included)
• Units: Standard (Imperial)
• Warning Light: Yes
• Gauge Mounting: Mounting Ring Included
• Included Components:
  • Pressure Gauge Wiring Harness (3-Wire Cable)
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • Temperature Gauge Wiring Harness (2-Wire Cable)
  • Wiring Harness (2-Wire Cable)
  • Pressure Sensor – 100 psi
  • Speedhut Temperature Sensor

HOW TO USE:

1. Mount the Gauge: Locate a suitable 4.20-inch diameter opening on your dashboard. Insert the Speedhut Quad Gauge into the opening and secure it using the included mounting ring from the back of the dashboard.
2. Connect the Power and Lighting: Attach the 3 ft Power & Lighting Harness to the designated terminals on the back of the gauge. Connect the power wire to a 12V power source (ignition-switched is recommended), the ground wire to a suitable ground point, and the lighting wire to your vehicle’s lighting circuit if you desire the gauge to illuminate with your headlights.
3. Install the Pressure Sensor: Locate an appropriate port on your engine for the included 100 psi pressure sensor. Thread the sensor into the port and connect the Pressure Gauge Wiring Harness (3-Wire Cable) to the sensor and the corresponding terminals on the back of the gauge.
4. Install the Temperature Sensor: Find a suitable location on your engine’s cooling system (e.g., thermostat housing, coolant passage) for the included Speedhut Temperature Sensor. Install the sensor and connect the Temperature Gauge Wiring Harness (2-Wire Cable) between the sensor and the gauge’s temperature terminals.
5. Connect the Voltage Wiring: Use the additional Wiring Harness (2-Wire Cable) to connect the voltage input terminals on the back of the gauge to a reliable 12V power source and ground in your vehicle’s electrical system.
6. Connect the Fuel Level Wiring: Connect the remaining wires from the additional Wiring Harness (2-Wire Cable) to your vehicle’s fuel level sender unit. Ensure your fuel level sender has a resistance of 300 ohms or less for compatibility. Note: The fuel level sensor itself is not included and will need to be sourced separately. Calibration of the fuel level gauge may be required based on your specific sender.
7. Test the Gauge: Once all connections are made, turn on your vehicle’s ignition to test the gauge functions. Verify that each of the four readings (water temperature, voltage, oil pressure, and fuel level) are displaying correctly. Check that the warning light illuminates appropriately when a threshold is met (refer to the gauge’s specific documentation for warning light behavior).

BENEFITS OF USING THE SPEEDHUT 4-1/2″ QUAD WATER TEMP/VOLTS/OIL PSI/FUEL LEVEL (R45-QG2-REV):

• Centralized Monitoring: Offers a single, integrated unit for monitoring four critical vehicle systems, reducing the need for multiple gauges.
• Space-Saving Design: Consolidates multiple functions into a compact 4-1/2″ gauge, freeing up dashboard space for other important controls.
• Improved Awareness: Allows drivers to stay informed about their vehicle’s critical systems, helping prevent unexpected issues like overheating or low oil pressure.
• Early Problem Detection: The included warning light provides early alerts, enabling drivers to address potential issues before they escalate into more significant problems.
• Enhanced Vehicle Longevity: Regular monitoring of engine health with real-time data can extend the life of key components and reduce maintenance costs.

FEATURES:

• Four-in-One Display: Integrates readings for water temperature, voltage, oil pressure, and fuel level into a single, space-saving instrument.
• Electronic Sensors Included (Temperature & Pressure): Comes with dedicated sensors for accurate measurement of water temperature and oil pressure.
• Pre-Wired Harnesses: Includes specific wiring harnesses designed for each gauge function, facilitating the connection process.
• Integrated Warning Indication: Features a built-in light to alert the driver to potential issues with any of the monitored parameters.
• Standard Sized Housing: The 4 1/2 inch diameter fits common gauge mounting locations.
• Secure Mounting System: The included mounting ring ensures a firm and stable installation on the dashboard.
• Designed for Common Fuel Level Senders: Compatible with fuel level sensors utilizing a resistance of 300 ohms or less.
