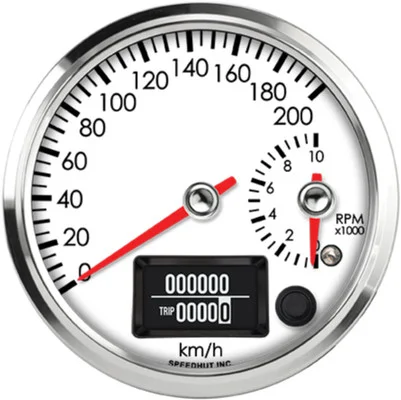

Speedhut 4″ 200km/h GPS Speedometer/10K Tachometer Gauge (R4-DS18-LEG)

Description

The Speedhut 4″ 200km/h GPS Speedometer/10K Tachometer Gauge (R4-DS18-LEG) offers a modern solution for monitoring two critical vehicle parameters in a single, easy-to-install unit. This dual gauge combines the accuracy of GPS-based speed measurement with a versatile tachometer, making it suitable for a wide range of vehicles and engine types. Experience precise readings and reliable performance backed by quality American craftsmanship.

KEY FEATURES AND BENEFITS:

• Dual Gauge Functionality: Integrates a GPS speedometer (0-200 km/h) and a tachometer (0-10,000 RPM) into one convenient 4-inch display.
• Hassle-Free GPS Speedometer: Utilizes GPS technology for real-time, accurate speed readings, eliminating the need for traditional speed sensors and calibration for tire sizes or gear ratios. Operates globally with free GPS data reception.
• Universal Tachometer Compatibility: Calibrated to work with virtually any engine that produces a tach signal exceeding one volt, across a range of 1/2 pulse to 6 pulses per revolution. Ensures accurate RPM readings even under demanding conditions.
• Pinpoint Accuracy: Features an internal microprocessor that ensures highly accurate readings for both speed and RPM.
• Precise Pointer Movement: Equipped with a high torque stepper motor, guaranteeing smooth and accurate pointer movement, essential for clear readings during vehicle operation.
• Simple Installation: The slim case design and convenient spin-lock ring allow for straightforward mounting. Only requires a 12V power connection and placement of the included waterproof GPS antenna.
• Robust and Stylish Design: Features a solid billet aluminum bezel for enhanced durability and a refined aesthetic. The gauge is also designed to be weather-resistant, ensuring performance in various environmental conditions.
• Peace of Mind: Backed by a Lifetime Warranty from the manufacturer, reflecting the quality and dependability of the product.
• American Made Quality: Proudly manufactured in the USA, ensuring high standards of craftsmanship and component quality.

SPECIFICATIONS:

• Gauge Type: Dual GPS Speedometer / Tachometer
• Speedometer Range: 0-200 km/h
• Tachometer Range: 0-10,000 RPM
• Size: 4 inch (100mm recommended hole size)
• Standard or Metric: Metric
• Included:
• GPS Antenna with 9.8 ft long cable and male SMA connector
• 8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks

HOW TO USE:

1. Mount the Gauge: Locate a suitable 4-inch (100mm) diameter opening in your vehicle’s dashboard or instrument panel. Secure the gauge in place using the slim case and spin-lock ring.
2. Connect Power and Lighting: Connect the 3 ft Power & Lighting Harness to a 12V power source in your vehicle. This harness also provides power for any LED illumination features of the gauge.
3. Install the GPS Antenna: Mount the waterproof GPS antenna in a location where it has a clear line of sight to the sky. This is crucial for receiving accurate GPS signals. Connect the antenna cable (with the male SMA connector) to the corresponding connector on the back of the gauge.
4. Connect the Tachometer Signal: Locate the tachometer signal output wire from your engine’s control unit (ECU), ignition system, or alternator. Connect this wire to the appropriate wire on the 8 ft Tachometer Harness (typically a single wire with a 2-pin connector).
5. Verify Functionality: Once all connections are made, start your vehicle and observe the gauge. The speedometer should begin to register your speed based on the GPS signal, and the tachometer should display the engine’s RPM. No calibration for speed is necessary due to the GPS technology.

BENEFITS OF USING THE SPEEDHUT 4″ 200KM/H GPS SPEEDOMETER/10K TACHOMETER GAUGE (R4-DS18-LEG):

• Accurate Speed Readings: The integrated GPS technology provides precise speed information without the complexities of mechanical or electronic speed sensors and eliminates potential inaccuracies from tire size or gear ratio changes.
• Versatile Engine Monitoring: The tachometer is compatible with a wide range of engine types, making it a suitable choice for various vehicles and projects.
• Simplified Installation: The GPS speedometer eliminates the need for intricate wiring to the vehicle’s speed output, streamlining the installation process.
• Space-Saving Design: Combining two essential gauges into a single 4-inch unit saves valuable dashboard space and offers a clean, integrated look.
• Reliable Performance: Built with quality components and backed by a lifetime warranty, ensuring long-term reliability and accurate readings.

FEATURES:

• Real-time speed tracking via satellite-based GPS.
• Monitors engine revolutions per minute up to 10,000 RPM.
• Compact 4-inch size for easy integration into most dashboards.
• Metric unit display for speed (kilometers per hour).
• Internal processing for highly precise measurements.
• Responsive pointer movement powered by a high-torque motor.
• Streamlined mounting with a spin-lock mechanism.
• Durable and attractive billet aluminum outer ring.
• Designed to withstand various weather conditions.
• Backed by the manufacturer’s lifetime guarantee.
• Proudly assembled in the United States.
