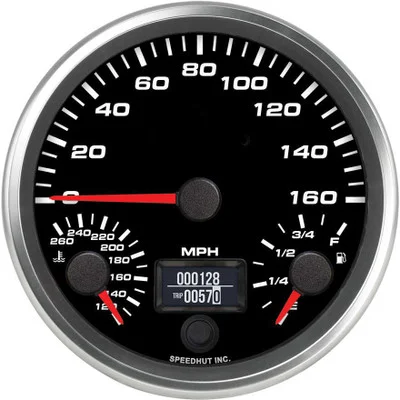

Speedhut 4.5″ Triple 160 mph Speedo/Fuel Level/WT Temp (L45-TG001-REV)

Description

The Speedhut 4.5″ Triple 160 mph Speedo/Fuel Level/WT Temp (L45-TG001-REV) is an all-encompassing instrument designed to provide critical vehicle information in a single, precise, and space-saving unit. This gauge integrates a GPS-enabled speedometer, a water temperature monitor, and a fuel level indicator, offering real-time insights into your vehicle’s performance and health. Its user-centric design ensures that essential metrics are readily accessible, empowering drivers with complete control over their vehicle’s operation. The inclusion of a GPS speedometer simplifies installation and enhances accuracy, making it a valuable addition to any vehicle.

KEY FEATURES AND BENEFITS:

• Triple Functionality: Combines a 160 MPH GPS speedometer, a 120-260°F water temperature gauge, and a standard Empty-Full fuel level gauge in one unit.
• GPS Speedometer Convenience: Utilizes GPS technology for accurate speed readings without the need for a traditional VSS or manual calibration for tire size or gear ratios.
• Effortless Installation: The GPS speedometer requires only a 12V power connection and the included waterproof GPS antenna, allowing for flexible mounting.
• Global Operation: Functions worldwide using free GPS technology, receiving data without any transmission or subscription fees.
• Clear and Immediate Data: Provides at-a-glance access to crucial speed, temperature, and fuel levels for informed driving.
• Comprehensive Monitoring: Offers a complete understanding of your engine’s health and performance through its integrated functions.

SPECIFICATIONS:

• Gauge Type: Triple GPS Speedometer
• Speedometer Range: 0-160 MPH
• Water Temperature Range: 120-260°F
• Fuel Level Range: Empty to Full (Standard)
• Size: 4 1/2 inch
• Hole Size: 4.230 inches (108mm)
• Standard or Metric: Standard (MPH, °F)
• Lighting: LED
• Included:
• GPS Antenna with 9.8 ft long cable and male SMA connector
• Temperature Gauge Wiring Harness (2-Wire Cable)
• 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
• Wiring Harness (2-Wire Cable)
• Speedhut Temperature Sensor

HOW TO USE:

1. Mount the Gauge: Secure the 4.5″ Triple Gauge in a suitable location on your dashboard using the spin-lock ring. Ensure the mounting hole is approximately 4.230 inches (108mm) in diameter.
2. Connect Power and Lighting: Use the provided 3 ft Power & Lighting Harness to connect the gauge to a 12V power source and ground. This harness also powers the LED lighting.
3. Install the GPS Antenna: Mount the waterproof GPS antenna in a location with a clear view of the sky. Connect the antenna to the speedometer using the 9.8 ft cable with the male SMA connector.
4. Connect the Temperature Sensor: Install the Speedhut Temperature Sensor in the desired location on your engine (e.g., coolant line). Use the Temperature Gauge Wiring Harness (2-Wire Cable) to connect the sensor to the gauge.
5. Connect the Fuel Level Sender: Use the additional Wiring Harness (2-Wire Cable) to connect the gauge to your vehicle’s existing fuel level sender unit. Ensure compatibility with standard Empty-Full senders.
6. Power On: Once all connections are secure, power on your vehicle. The GPS speedometer will acquire a satellite signal, and all three gauges should begin displaying their respective readings.

BENEFITS OF USING THE SPEEDHUT 4.5″ TRIPLE 160 MPH SPEEDO/FUEL LEVEL/WT TEMP (L45-TG001-REV):

• Consolidated Information: Eliminates the need for multiple individual gauges, saving dashboard space and simplifying the visual layout.
• Accurate Speed Readings: GPS technology provides precise speed measurement without the complexities of mechanical or sensor-based systems.
• Simplified Installation: The GPS speedometer aspect significantly reduces installation complexity compared to traditional speedometers.
• Reliable Monitoring: Offers consistent and dependable readings for speed, water temperature, and fuel level, crucial for maintaining vehicle health.
• Enhanced Awareness: Provides drivers with immediate and comprehensive data, leading to better-informed driving decisions.

FEATURES:

• Integrates three essential measurement tools into a single 4.5-inch unit.
• Utilizes satellite-based positioning for precise velocity indication.
• Monitors engine coolant temperature within a 120-260°F range.
• Displays the amount of fuel remaining in the tank (Empty to Full).
• Requires only a 12V electrical connection for the GPS speedometer function.
• Includes a weather-resistant antenna designed for external mounting.
• Offers plug-and-play connectivity for the temperature sensor.
• Provides straightforward wiring for the fuel level input.
• Illuminated by energy-efficient light-emitting diodes for excellent visibility.
• Designed with a standard 4.230-inch (108mm) mounting diameter for common applications.
