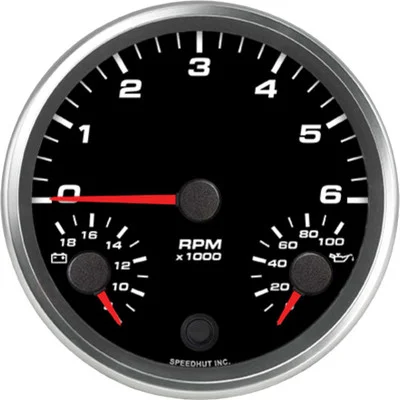

Speedhut 4.5″ Triple 6K Tachometer/Volt/Oil PSI Gauge (L45-TG007-REV)

Description

The Speedhut 4.5″ Triple 6K Tachometer/Volt/Oil PSI Gauge (L45-TG007-REV) is a comprehensive engine monitoring solution, integrating three essential instruments into a single, space-efficient 4.5-inch unit. This gauge allows you to simultaneously track your engine’s revolutions per minute (RPM), electrical system voltage, and oil pressure, providing a complete overview of your vehicle’s health and performance in real time. Its user-friendly design ensures that critical information is readily accessible, empowering you with enhanced control over your driving experience and engine efficiency.

KEY FEATURES AND BENEFITS:

• All-in-One Monitoring: Combines a 6K RPM tachometer, 8-18 volt voltmeter, and 0-100 psi oil pressure gauge in a single unit.
• Precise Tachometer Readings: Operates with 1/2 to 6 pulses per revolution and is calibrated for any engine and tach signal over one volt, ensuring accurate RPM display even in demanding conditions.
• Instant Data Access: Provides real-time measurements of key engine parameters for immediate assessment of performance and potential issues.
• Space-Saving Design: The 4.5-inch form factor integrates three gauges into the space of one, optimizing dashboard layout.
• Easy to Install: Designed for straightforward installation, allowing for quick setup and integration into your vehicle’s system.
• Clear LED Illumination: Features LED lighting for excellent visibility of the readings under various lighting conditions.
• Comprehensive Package: Ships with all necessary wiring harnesses and the oil pressure sensor, ensuring a complete installation process.

SPECIFICATIONS:

• Gauge Type: Triple Tachometer
• Tachometer Range: 0-6000 RPM
• Voltmeter Range: 8-18 Volts
• Oil Pressure Range: 0-100 PSI
• Size: 4 1/2 inch
• Hole Size: 4.230 inches (108mm)
• Lighting: LED
• Included: 8 ft Tachometer Harness (1 Wire 2 Pin Connector), Pressure Gauge Wiring Harness (3-Wire Cable), Pressure Sensor (100 psi), 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)

HOW TO USE:

1. Mount the Gauge: Locate a suitable 4.230″ (108mm) diameter opening on your dashboard or instrument panel and securely mount the Speedhut Triple Gauge.
2. Connect the Tachometer Harness: Connect the 8 ft Tachometer Harness (1 Wire 2 Pin Connector) to the tachometer signal output from your engine’s control unit or ignition system, and then to the corresponding connector on the back of the gauge.
3. Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to a suitable 12V power source, ground, and the gauge’s power and lighting connections.
4. Install the Pressure Sensor: Mount the included 100 psi pressure sensor to an appropriate port on your engine’s oil system.
5. Connect the Pressure Gauge Wiring Harness: Connect the 3-Wire Pressure Gauge Wiring Harness between the installed pressure sensor and the corresponding connector on the back of the gauge.
6. Verify Connections: Double-check all wiring connections to ensure they are secure and correct.
7. Test the Gauge: Start your vehicle and observe the gauge readings to confirm proper functionality of the tachometer, voltmeter, and oil pressure displays.

BENEFITS OF USING THE SPEEDHUT 4.5″ TRIPLE 6K TACHOMETER/VOLT/OIL PSI GAUGE (L45-TG007-REV):

• Provides a consolidated view of critical engine data, reducing clutter and simplifying monitoring.
• Enables proactive identification of potential engine issues by tracking vital parameters in real time.
• Offers accurate RPM readings essential for performance driving and engine tuning.
• Allows for monitoring of the vehicle’s electrical system voltage, helping to prevent battery and charging system problems.
• Keeps you informed about your engine’s oil pressure, crucial for maintaining proper lubrication and preventing engine damage.
• The LED lighting ensures clear visibility of the readings at any time of day or night, enhancing safety and convenience.

FEATURES:

• Integrates three distinct gauges into a single 4.5-inch housing.
• Tachometer compatible with a wide range of engine pulse signals.
• Monitors electrical system voltage from 8 to 18 volts.
• Displays oil pressure readings from 0 to 100 PSI.
• Fits standard 4.230″ (108mm) gauge openings.
• Utilizes LED technology for bright and clear illumination.
• Includes necessary wiring for tachometer and pressure sensor connections.
• Comes with a dedicated pressure sensor for accurate oil pressure readings.
• Designed for straightforward electrical and signal connections.
