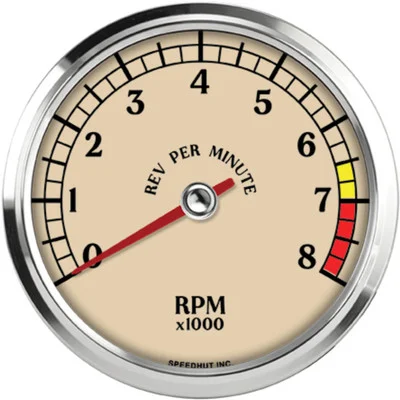

Speedhut 4″ Antique Series 8K RPM Tachometer (L4-TC3-ATQ)

Description

The Speedhut 4″ Antique Series 8K RPM Tachometer (L4-TC3-ATQ) is an essential instrument for monitoring your engine’s performance. This gauge provides precise, real-time readings of your engine’s revolutions per minute (RPM), allowing you to maximize power and efficiency. Designed for compatibility with a wide range of vehicles, it works seamlessly with standard spark plug ignition systems and engines with 1 to 12 cylinders. Its robust construction ensures reliability, while the included components facilitate a straightforward installation process.

KEY FEATURES AND BENEFITS:

• Precise RPM Monitoring: Delivers accurate, real-time RPM readings, crucial for optimizing engine performance.
• Wide Compatibility: Functions with standard spark plug ignition systems and engines ranging from 1 to 12 cylinders, offering versatility across various vehicles.
• Easy Installation: Designed for simple setup with included power and tachometer harnesses, as well as a mounting ring.
• Robust Build: Features a rugged construction, ensuring longevity and reliable performance even in demanding conditions.
• Optimized Engine Performance: Helps users understand and manage their engine’s capabilities, leading to improved efficiency and responsiveness.

SPECIFICATIONS:

• Gauge Type: Tachometer
• Signal Type: Standard spark plug ignition systems
• Cylinder Compatibility: 1-12 cylinders
• Range: 0 – 8,000 RPM
• Size: 4 inches
• Hole Size: 3.95 inches (100mm)
• Internal Shift Light: No
• Included:
  • 3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
  • 8 ft Tachometer Harness (for LED Lit Gauges – 1 Wire 2 Pin Connector)
  • Gauge Mounting Ring

HOW TO USE:

1. Mount the Gauge: Secure the tachometer in your desired location using the included mounting ring. Ensure the 3.95-inch (100mm) hole size is appropriate.
2. Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the designated terminals on the back of the tachometer. Connect the power wire to a 12V power source, the ground wire to a suitable ground, and the lighting wire to your vehicle’s lighting circuit if you desire backlighting.
3. Connect the Tachometer Signal Harness: Connect the 8 ft Tachometer Harness (1 Wire 2 Pin Connector) to the designated signal terminal on the back of the tachometer. Connect the other end of the signal wire to a reliable tachometer signal source in your vehicle’s engine bay. This is typically a wire connected to the negative (-) side of the ignition coil or a designated tachometer output from your engine control unit (ECU), depending on your vehicle.
4. Verify Connections: Double-check all wiring connections to ensure they are secure and correct according to your vehicle’s wiring diagram and the tachometer’s instructions.
5. Start Your Engine: Once all connections are verified, start your engine. The tachometer needle should now indicate the engine’s RPM.
6. Observe Readings: Monitor the tachometer to get real-time feedback on your engine’s speed during operation.

BENEFITS OF USING THE SPEEDHUT 4″ ANTIQUE SERIES 8K RPM TACHOMETER (L4-TC3-ATQ):

• Delivers precise and instantaneous readings of your engine’s RPM for accurate performance monitoring.
• Helps avoid over-revving and supports optimal gear shifting to enhance power and fuel efficiency.
• Compatible with a broad range of engines and ignition systems for maximum flexibility.
• Simple to install with included wiring harnesses and mounting accessories.
• Engineered with durable materials for long-term use in various driving conditions.

FEATURES:

• Displays engine speed in revolutions per minute (RPM) up to 8,000.
• Designed with a classic “Antique Series” aesthetic.
• Compatible with ignition systems using standard spark plug signals.
• Functions accurately with engines having 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, or 12 cylinders.
• Features a 4-inch diameter gauge face for clear visibility.
• Requires a mounting hole of 3.95 inches (100mm) for secure installation.
• Includes a 3 ft power and lighting harness for electrical connections.
• Comes with an 8 ft tachometer signal harness for RPM input.
• Mounting ring is provided for a finished and secure installation in your dashboard.
• Engineered for pointer precision, ensuring accurate readings even under demanding conditions.
• Calibrated to operate with tachometer signals over one volt.
