Speedhut 4″ EV -50-300 Power/ 0-80C Motor Temp Gauge (FAE4-DG5-EV)

Description

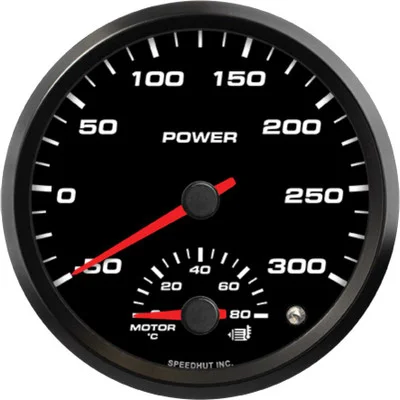

The Speedhut 4″ EV -50-300 Power/ 0-80C Motor Temp Gauge (FAE4-DG5-EV) is a specialized instrument designed for electric vehicles, providing simultaneous and accurate monitoring of two critical parameters: power output/consumption and motor temperature. This 4-inch gauge offers a clean, integrated solution for keeping a close eye on your EV’s performance and thermal health, contributing to a safer and more informed driving experience.

KEY FEATURES AND BENEFITS:

• Dual Monitoring: Tracks both power (-50 to 300 kW) and motor temperature (0 to 80°C) in a single, space-saving 4-inch unit.
• CAN-Bus Integration: Seamlessly connects to your EV’s control system via CAN-Bus (500K baud rate), ensuring reliable and direct data acquisition without the need for additional sensors.
• Enhanced Safety: Features a built-in warning light that alerts the driver when power or motor temperature reaches a critical threshold, allowing for timely intervention.
• Straightforward Installation: Designed for ease of setup, utilizing the included power, lighting, and CAN-bus harnesses.
• Metric Display: Provides readings in standard metric units (kilowatts and degrees Celsius) for easy understanding.

SPECIFICATIONS:

• Gauge Type: Dual Gauge (Power & Motor Temperature)
• Signal Type: CAN-Bus (500K baud rate)
• Power Range: -50 to 300 kW
• Motor Temperature Range: 0 to 80°C
• Size: 4 inch
• Hole Size: 3.93 inches (100mm)
• Units: Metric
• Included:
  • 3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
  • EV CAN Harness
  • EV CAN Jumper Harness

HOW TO USE:

1. Connect the EV CAN Harness: Plug the provided EV CAN harness into the designated CAN-bus port on your electric vehicle’s control system.
2. Connect the Gauge: Connect the other end of the EV CAN harness to the corresponding port on the back of the Speedhut Dual Gauge.
3. Connect the Power & Lighting Harness: Attach the 3 ft Power & Lighting Harness to the power and ground connections in your vehicle’s electrical system, as well as to the appropriate terminals on the gauge for power and illumination.
4. Mount the Gauge: Insert the 4-inch gauge into a 3.93-inch (100mm) diameter opening in your dashboard or instrument panel. Secure it using the appropriate mounting hardware (if provided or as needed).
5. Verify Operation: Once all connections are secure, turn on your vehicle’s power. The gauge should illuminate and begin displaying the power and motor temperature readings. The warning light will illuminate if either parameter exceeds a preset limit (refer to the gauge’s documentation for specific warning thresholds).

BENEFITS OF USING THE SPEEDHUT 4″ EV -50-300 POWER/ 0-80C MOTOR TEMP GAUGE (FAE4-DG5-EV):

• Proactive Monitoring: Allows for real-time monitoring of power and motor temperature, helping optimize efficiency and driving habits.
• Motor Protection: Early detection of overheating ensures the electric motor’s longevity and optimal performance.
• Space-Saving Design: Combines two essential readings in one compact gauge to preserve dashboard aesthetics.
• Accurate Real-Time Data: CAN-Bus connectivity ensures precise and timely feedback directly from the EV’s system.
• Safety Alert: Integrated warning light helps prevent potential damage by signaling critical conditions immediately.

FEATURES:

• Simultaneous display of power output/regeneration and motor temperature readings.
• Direct data acquisition via CAN-Bus (500K baud rate).
• Integrated warning light for critical power or temperature levels.
• Compact 4-inch design for versatile dashboard installation.
• Plug-and-play setup using provided power and CAN-bus harnesses.
• Displays readings in kilowatts (kW) and degrees Celsius (°C).
