Speedhut Humvee 6-18 Volt 5-Gauge Kit (HV-5KIT-002)

Description

The Speedhut Humvee 6-18 Volt 5-Gauge Kit (HV-5KIT-002) is engineered specifically for military series High Mobility Multipurpose Wheeled Vehicles (HMMWVs), delivering precise and dependable system monitoring. This all-in-one kit comprises a GPS speedometer, oil pressure gauge, 6-18 volt gauge, water temperature gauge, and fuel level gauge. One of its most valuable features is compatibility with OEM sensors, eliminating the need for additional sensor installation. These gauges offer optimal readability in all lighting conditions thanks to their bright LED backlighting. Maintaining the rugged look of military Humvees, the dials include authentic Humvee-style ticks and numbers. The kit includes a custom dash panel tailored to accommodate all five gauges for a clean and professional fit. With a GPS speedometer that does not rely on a traditional sensor and a programmable fuel gauge that adapts to a range of sending units, this kit modernizes your Humvee’s instrumentation without compromising its original feel.

KEY FEATURES AND BENEFITS:

• Includes GPS speedometer, oil pressure, 6-18 volt, water temperature, and fuel level gauges.
• Compatible with original Humvee OEM sensors—no extra sensors needed.
• Bright LED backlighting ensures clear visibility in all lighting conditions.
• Authentic Humvee-style dial markings maintain vehicle’s original aesthetic.
• Custom dash panel included for a clean, integrated installation.
• GPS speedometer provides accurate readings without a speed sensor.
• Programmable fuel level gauge works with various OEM fuel senders.

SPECIFICATIONS:

• Included Gauges: GPS Speedometer, Oil Pressure Gauge, 6-18 Volt Gauge, Water Temperature Gauge, Fuel Level Gauge
• Speedometer Diameter: 3.375″ (85mm)
• Other Gauge Diameters: 2.062″ (52mm) each
• Power Requirement: 12 Volt Systems
• Daytime Dial Appearance: Black Background with White Numbers
• Nighttime Dial Appearance: Numbers with Green LED Glow
• Pointer Appearance: Standard White (Glows Red)
• Bezel Finish: Stealth Black
• Window Type: Flat

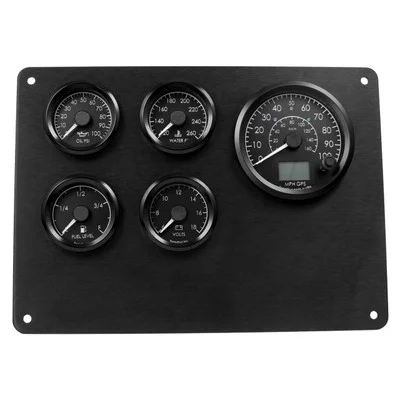

• Included: Humvee 5 Gauge Dash Panel

HOW TO USE:

1. Preparation: Ensure your Humvee’s ignition is off and disconnect the negative battery terminal for safety.
2. Remove Existing Panel (if applicable): Carefully remove the existing instrument panel from your Humvee.
3. Install New Dash Panel: Position and secure the included Speedhut 5-gauge dash panel into the designated location.
4. Mount Gauges: Insert each of the five Speedhut gauges into the corresponding openings in the new dash panel. Ensure they are securely fastened.
5. Connect Wiring: Connect the wiring harnesses of each gauge. Use the existing OEM sensor wiring for oil pressure, water temperature, and fuel level. Connect power and ground for each gauge. The GPS speedometer requires a 12V power connection and the waterproof GPS antenna.
6. Fuel Level Gauge Programming (if needed): Program the gauge to match your Humvee’s fuel sending unit ohm range. Refer to Speedhut instructions for steps.
7. GPS Antenna Placement: Mount the waterproof GPS antenna in a location with a clear view of the sky (roof or dashboard recommended).
8. Final Checks: Double-check all wiring for secure and correct connections.
9. Reconnect Battery: Reconnect the negative battery terminal.
10. Testing: Turn on the ignition to ensure all gauges function correctly. Test GPS speedometer during a short drive if possible.

BENEFITS OF USING THE SPEEDHUT HUMVEE 6-18 VOLT 5-GAUGE KIT (HV-5KIT-002):

• Accurate GPS speed readings without traditional cable-driven systems.
• Uses existing OEM sensors, reducing installation time and complexity.
• LED-lit dials improve visibility in all conditions for safer operation.
• Maintains authentic Humvee appearance with military-style dial design.
• Combines essential gauges into one unified, modernized panel.
• Programmable fuel level gauge accommodates different sender ranges.
• Reliable performance supported by robust build and precision electronics.

FEATURES:

• Integrated GPS receiver for precise speed measurement.
• Direct compatibility with factory-installed oil pressure sending units.
• Clear indication of the vehicle’s electrical system voltage (6-18V).
• Accurate monitoring of engine coolant temperature using the OEM sensor.
• Programmable fuel level display compatible with various sender resistances.
• Vibrant LED illumination for enhanced readability day and night.
• Distinctive Humvee-style numbering and markings on the gauge faces.
• Durable stealth black bezels for a rugged and classic appearance.
• Flat gauge windows for a clean and unobstructed view.
• Custom-fit dash panel included for a seamless and professional installation.
