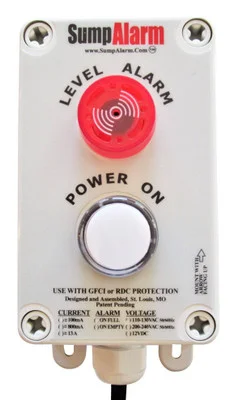

Sump Alarm 120V 33‘ Float Alarm w/ Power On Light (SA-120V-2L-33F)

Description

Sump Alarm 120V 33′ Float Alarm w/ Power On Light (SA-120V-2L-33F) is an essential device for providing timely alerts when liquid levels rise to undesirable heights. Designed for both indoor and outdoor use, this system utilizes both audible and visual signals to ensure immediate awareness of potential overflow situations. Its versatility makes it suitable for a wide range of applications, including sump pumps, water tanks, lift stations, low-density oil containment, and sewage water management. Equipped with a long 33-foot tethered float, it allows for flexible and accurate monitoring in various basin depths. The inclusion of a power-on indicator offers added convenience and the potential to visually confirm pump power when connected to the same circuit. Ready for immediate operation and featuring user-friendly installation components, this high-water alarm provides a reliable layer of protection against potential water damage.

KEY FEATURES AND BENEFITS:

• Dual Alert System: Loud 90dB horn and 1-inch red LED indicator provide immediate audible and visual notification of high-water levels.
• Versatile Application: Suitable for sump pumps, water tanks, lift stations, low-density oils, and sewage water, offering broad utility.
• Power Status Indication: 1-inch white LED pilot light confirms power to the alarm unit and, if connected to the same circuit, the pump.
• Flexible Monitoring: 33-foot tethered Water Boss float allows accurate placement for varied sump or basin depths.
• Durable Construction: Designed for reliable performance in temperatures ranging from -40°F to 140°F for indoor and outdoor use.
• Ready to Install: Includes mounting holes, feet, wall anchors, hardware, and wire ties for easy setup.

SPECIFICATIONS:

• Alarm Type: High-Water Level
• Voltage: 120V AC
• Audible Alarm: 90dB horn
• Visual Alarm: 1-inch Red LED Indicator Light
• Power Indicator: 1-inch White LED Pilot Light
• Float Switch: 33 ft. Tethered Water Boss Float
• Power Cord: 6 ft. 3-Prong Grounded Plug
• Operating Temperature: -40°F to 140°F
• Mounting: 4 Rear Mounting Holes, Mounting Feet
• Included: Wall Anchors, Hardware, Wire Ties

HOW TO USE:

1. Mount the Alarm Unit: Choose a suitable indoor or outdoor location where the alerts will be easily noticed. Use the provided mounting holes, feet, and included hardware and wall anchors as needed.
2. Position the Float Switch: Place the Water Boss float in the sump pit, water tank, or containment area. Ensure the float moves freely without obstructions, adjusting the activation height as needed with the 33-foot cable.
3. Connect the Power: Plug the 6 ft. 3-prong grounded plug into a 120V AC outlet. Check that the white LED pilot light is illuminated to confirm power. For pump power indication, plug into the same circuit as the pump if desired.
4. Test the Alarm: Raise the float manually to simulate a high-water level. Confirm that the red LED flashes and the 90dB horn sounds. Lower the float to ensure the alarm resets properly.
5. Secure the Float Cable: Use the included wire ties to secure any excess cable and prevent interference with the float or pump operation.
6. Regularly Inspect: Periodically check the alarm, float switch, and cables for proper functionality and absence of obstructions or damage.

BENEFITS OF USING THE SUMP ALARM 120V 33′ FLOAT ALARM W/ POWER ON LIGHT (SA-120V-2L-33F):

• Proactively protects against water damage by providing immediate audible and visual alerts of rising liquid levels.
• Ensures quick identification of high-water events even in noisy or busy environments.
• Offers visual confirmation of power status for both the alarm and potentially the sump pump.
• Versatile for use with water, low-density oils, and sewage across residential, commercial, and industrial settings.
• Reliable performance thanks to robust construction and a wide operating temperature range.
• Simple, hassle-free setup with included mounting hardware and accessories.

FEATURES:

• Loud 90 Decibel Horn: Provides an immediate and clear audible warning of high-water events.
• Bright 1-inch Red LED: Delivers a highly visible visual alert that can be seen from afar.
• Power-On Confirmation: A white LED pilot light clearly indicates that the unit has power.
• Pump Power Indication (Same Circuit): The white LED also confirms pump power if wired into the same circuit.
• 33-Foot Tethered Float: Allows flexible placement and adjustable detection height in deep sumps or tanks.
• Wide Operating Temperature Range: Maintains reliable function from -40°F to 140°F.
• Versatile Liquid Monitoring: Suitable for water, low-density oils, and sewage applications.
• Included Installation Hardware: Facilitates easy and secure setup with wire ties and mounting accessories.
• Durable for Indoor/Outdoor Use: Engineered to perform reliably in varied environmental conditions.
