Description

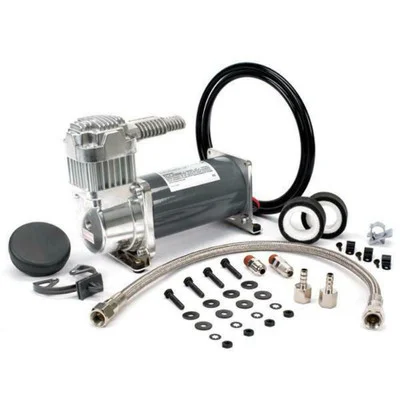

VIAIR 330C IG Series Compressor Kit (33050) is a 12V air compressor designed for industrial-grade performance with a 100% duty cycle at 100 PSI and a max working pressure of 150 PSI. Featuring an intercooler head for efficient cooling and an IP67 ingress protection rating, it’s ideal for reliable tire inflation and other pneumatic applications.
This air compressor kit includes vibration isolators, a stainless steel braided leader hose, and comprehensive mounting hardware for smooth installation. With a max air tank size of 5 gallons, it’s a versatile and durable compressor for a range of needs.
- Specifications and Dimensions
- 12-Volt Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 16 Amps
- Ingress Protection Rating: IP67
- Max. Ambient Temp: +158°F
- Min. Ambient Temp: -40°F
- Dimensions: 9″L x 4″W x 6.75″H
- Net Weight: 8.25 lbs.
- Noise Level: 78 dB
- Air Flow Capacity: 1.06 cc/min
- Key Features and Benefits
- 100% duty cycle at 100 PSI for continuous operation.
- Max working pressure of 150 PSI for versatile pneumatic needs.
- Intercooler head ensures optimal cooling performance.
- 5-gallon max air tank size provides ample air supply.
- IP67-rated sealed design for enhanced weather resistance and durability.
- Vibration isolators ensure smooth operation.
- Includes
- Vibration Isolators
- Mounting Hardware
- Heavy Duty 1/4″ NPT Check Valve
- Stainless Steel Braided PTFE-Lined Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
