Description

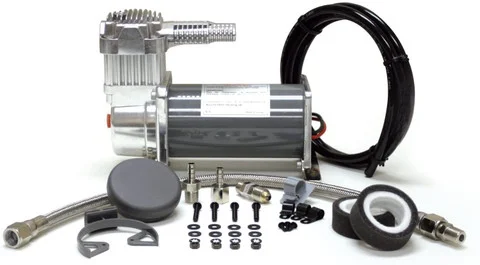

Viair 450C IG Series Compressor Kit 12V, Intercooler Head, 100% Duty, Sealed (45050) is an industrial-grade compressor designed to fill air reservoir tanks and features a newly-developed, patents-pending innovative head design for improved heat dissipation.
The VIAIR 45050 450C IG Series Compressor Kit with Stainless Steel Braided Leader Hose is equipped with a separate stainless steel braided PTFE-lined leader hose and a check valve assembly to protect the compressor against high amperage restarts, making it ideal for heavy-duty applications.
- Specifications and Dimensions
- 12-Volt Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 23 Amps
- Max. 24V Amp Draw: 13 Amps
- Ingress Protection Rating: IP67
- Max. Ambient Temp: +158°F
- Min. Ambient Temp: -40°F
- Dimensions: 11.25″L x 4″W x 6.75″H
- Net Weight: 10.40 lbs.
- Key Features and Benefits
- Thermal Overload Protector for enhanced safety
- Vibration Isolators for stable performance
- Heavy Duty 1/4″ NPT Check Valve
- Stainless Steel Braided PTFE-Lined Leader Hose
- Air Line for Remote Mount Air Filter Installation
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements for convenience
- Mounting Hardware and Installation Instructions included
