Description
VIAIR 20085 Dual Platinum Gen 2 485C Onboard Air System (20085) features dual compressors with a 2.5-gallon air tank, delivering 200 PSI and 3.82 CFM for maximum performance. The Gen 2 485C compressors offer a 100% duty cycle, making this system suitable for various applications, including tire inflation and air lockers.
With a sealed pressure switch, dash panel gauge, and 0-220 PSI pressure regulator included, the VIAIR 20085 dual onboard air system Gen 2 ensures precise control and monitoring.
- Specifications and Dimensions
- 12-Volt Permanent Magnetic Motor
- Duty Cycle: 100% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Combined Max. Amp Draw: 44 Amps
- Ingress Protection Rating: IP67
- Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
- Net Weight: 22.10 lbs.
- Brand: VIAIR
- Voltage: 12 Volts
- Noise Level: 69 dB
- Air Flow Capacity: 3.82 Cubic Feet Per Minute
- Key Features and Benefits
- Dual 485C compressors deliver a maximum working pressure of 200 PSI
- 2.5-gallon matte black air tank with a 200 PSI rating
- Includes a digital tire inflation gun (180 PSI) and pressure regulator
- Sealed pressure switch (165 PSI on, 200 PSI off) for optimal operation
- Comprehensive set of fittings and manifold for easy installation
- IP67 rated for dust and water protection

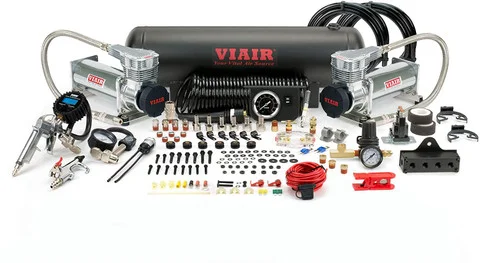

- Includes
- 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)
- (2) 485C (Platinum or Stealth Black) Compressors w/Thermal Overload Protectors
- Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
- Digital Tire Inflation Gun (180 PSI)
- 0-220 PSI Pressure Regulator
- Sealed Pressure Switch (165 PSI on, 200 PSI off)
- 1/4” Drain Cock
- Heavy Duty 80 Amp Relay
- Mini ANL Fuse Holder with 60 Amp Fuse
- 1/4” Quick Connect Coupler (M)
- 1/4” 250 PSI Safety Valve
- (4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings
- 6-Port Billet Manifold with Mounting Bracket (1/4”)
- (2) 20ft. 1/4” Air Line Included
- 5 Pc. 1/4” NPT Plugs Kit
- Extension Braided Black Coil Hose
- Rubber Tip Blow Gun
- 3-in-1 Air Down Gauge
- Stainless Steel Air Line Cutter
