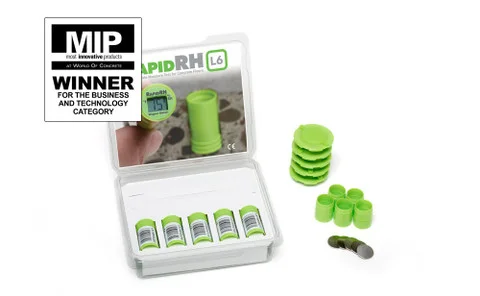

Wagner Meters 5-Pack Rapid RH L6 Smart Sensors (880-R0000-009)

Description

The Wagner Meters 5-Pack Rapid RH L6 Smart Sensors (880-R0000-009) provides essential components for expanding or replenishing your Rapid RH® L6 concrete moisture testing system. This package is ideal for users who already own the Total Reader® and require additional Smart Sensors to continue accurate and reliable moisture measurements in concrete slabs. Each of the five included L6 Smart Sensors is factory calibrated using advanced CMOSens® technology, ensuring precise readings right out of the box. To guarantee the integrity of the calibration, each pack is delivered in tamper-resistant packaging and includes a NIST-traceable calibration certificate.

KEY FEATURES AND BENEFITS:

• Factory Calibration: Each sensor is factory calibrated, ensuring high accuracy and eliminating the need for pre-use calibration.
• Customized SHT35 Humidity Sensor: Provides accurate readings even at high relative humidity levels (up to 90-100% RH), directly supporting compliance with ASTM F2170.
• Storage Capacity: Each sensor can store up to 512 measurements, allowing for extensive data collection.
• Compatibility: Works seamlessly with the Rapid RH® L6 system, Rapid RH® Total Reader®, and DataMaster™ L6 app.
• Extensions and Protective Caps: Included extensions and protective caps ensure proper installation and protection of the sensors during testing.
• Tamper-Proof Packaging: Sensors are sealed in tamper-resistant packaging to maintain their factory calibration until use.

SPECIFICATIONS:

• Sensor Type: Customized SHT35 humidity sensor from Sensirion
• RH Accuracy: +/- 2% at 50% and 90% RH
• Storage Capacity: 512 measurements per sensor
• Sensor Length: 1.6 inches
• Compatibility: Rapid RH® L6 system, Rapid RH® Total Reader®, DataMaster™ L6 app

HOW TO USE:

• Prepare the Concrete Slab: Drill holes in the concrete slab according to the ASTM F2170 standard, ensuring the correct depth and spacing.
• Insert the Extension: Attach an extension to an L6 Smart Sensor.
• Place the Sensor: Insert the Smart Sensor with the attached extension into the drilled hole, ensuring it is positioned at the correct depth within the concrete.
• Cover the Hole: Place a protective cap with a rubber plug and butyl gasket over the hole to seal it. Secure the stainless steel cover over the cap.
• Acclimation Period: Allow the sensor to acclimate to the environment within the concrete for the time specified in the ASTM F2170 standard (typically 24 hours).
• Take Readings: Use the Rapid RH® Total Reader® or the DataMaster™ L6 app to wirelessly connect to the Smart Sensor via Bluetooth® and take humidity and temperature readings.
• Record Data: The sensor can store up to 512 time-stamped measurements. You can download this data using the Total Reader® or the app for documentation and analysis.
• Post-Testing: After testing, remove the sensor and plug the hole appropriately.

BENEFITS OF USING THE WAGNER METERS 5-PACK RAPID RH L6 SMART SENSORS (880-R0000-009):

• Efficient Testing: Enables multiple tests or replacement of used sensors, ensuring continuous operation without delays.
• Guaranteed Accuracy: Factory calibration leads to more reliable results and reduces the risk of errors.
• Compliance with ASTM F2170: Designed to meet the requirements for in-situ RH testing, critical for many projects.
• Streamlined Data Management: Wireless data transfer simplifies the testing process, saving time and improving data management.
• Integrity Assurance: Tamper-resistant packaging ensures you receive genuine, perfectly calibrated Wagner Smart Sensors.

FEATURES:

• Individually Calibrated Sensors: Each sensor is calibrated at the factory for optimal accuracy.
• NIST Traceable Calibration: Comes with a certificate verifying traceability to national standards.
• High RH Accuracy: Maintains +/- 2% accuracy even at high humidity levels (up to 90-100% RH).
• Onboard Data Logging: Each sensor can store up to 512 time-stamped measurements.
• Wireless Data Transfer: Compatible with the Rapid RH® Total Reader® and DataMaster™ L6 app via Bluetooth®.
• ASTM F2170 Compliant: Designed to meet the requirements of the standard for in-situ RH testing.
• Tamper-Resistant Packaging: Ensures the integrity of the calibration before use.
• Includes Extensions: Provides the necessary components for proper sensor placement within the concrete.
• Protective Caps and Covers: Protect the sensor and ensure a proper seal during testing.
• Floor Map Included: Helps in documenting the locations of the sensors during testing.
