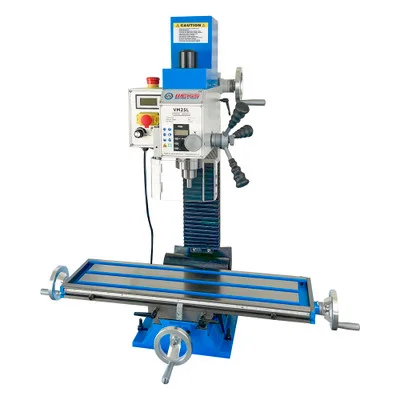

Weiss 7″ x 27″ Benchtop Milling Machine with R8 Spindle – 100-2250 RPM – 1.5HP (VM25L)

Description

The Weiss 7″ x 27″ Benchtop Milling Machine with R8 Spindle – 100-2250 RPM – 1.5HP (VM25L) is a third-generation mill designed for precision, durability, and efficiency. It offers outstanding value and advanced features typically found in larger mill drills, making it ideal for both professionals and beginners. Powered by a 1.5HP (1100W) brushless DC motor, this machine delivers quiet, reliable performance with minimal maintenance. The variable speed control, ranging from 100 to 2250 RPM, provides smooth operation across various materials.

The single-speed tooth belt drive system ensures silent and efficient power transmission, eliminating issues associated with plastic gears. Its precision-ground dovetail headstock column and table ways guarantee rigidity and accuracy, while the true inch-pitch leadscrews with larger dials offer fine measurement control. Operators can easily monitor spindle RPM through a digital readout and track spindle movement with an inch/metric depth ruler. Built with high-quality electronics and a heavy-duty cast-iron base, this Weiss milling machine delivers long-term reliability, stability, and superior machining results.

Features and Specifications:

• Motor: 1.5HP (1100W) brushless DC motor
• Speed Range: 100 to 2250 RPM variable speed
• Table Size: 7″ x 27″ precision-ground surface
• Drive System: Single-speed tooth belt system
• Spindle Type: R8 spindle with high-precision taper roller bearing.
• Feed Control: Manual fine downfeed (min. feed rate 0.002″).
• Leadscrews: True inch-pitch screws with .002″ graduated dials.
• Construction: Cast iron base, dovetail column, and table ways.
• Safety Features: Clear chip guard with automatic shut-off.
• Ideal For: Metalworking, drilling, milling, and fabrication tasks.
