Description

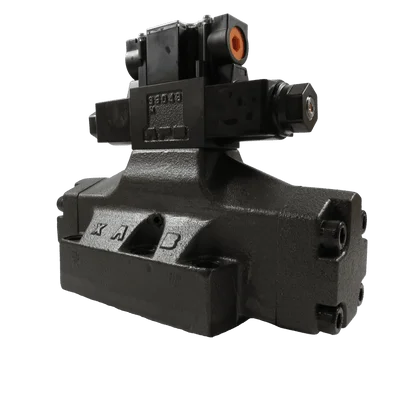

Yuken Dir. Valve Pilot Operated All Open In Center 120 (DSHG-06-3C3-A120-5390) is built for industrial hydraulic systems requiring precise control and stable operation. Featuring a spring-centered open center spool type, this valve ensures balanced pressure across all ports, making it ideal for managing flow in complex hydraulic circuits.
With a maximum operating pressure of 3050 psi and a wide operating temperature range of 5 °F to 160 °F, the Yuken open center valve is designed to perform reliably in varied industrial settings. The 120V AC coil voltage and robust terminal box construction provide enhanced durability and electrical safety.
- Specifications and Dimensions
- Spool Type: Open Center (All Ports)
- Coil Voltage: 120 V AC (50/60 Hz)
- Max Operating Pressure: 3050 psi
- Max Operating Temperature: 160 °F
- Min Operating Temperature: 5 °F
- Overall Height: 208.3 mm
- Overall Length: 255 mm
- Overall Width: 70 mm
- Weight: 27.34 lbs
- Key Features and Benefits
- All open center spool design for consistent pressure management
- Spring-centered configuration for reliable directional control
- Robust terminal box for secure electrical connections
- Wide temperature range from 5 °F to 160 °F for varied applications
