Description

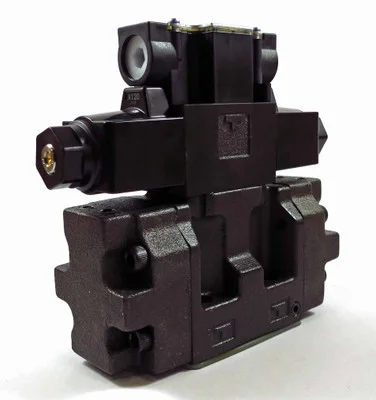

Yuken Directional Valve Pilot Operated (DSHG-03-3C2-E-A120-1490) is an advanced hydraulic control solution built to manage high-pressure systems with precision and reliability. Featuring a robust pilot-operated design, this valve ensures smooth and efficient fluid flow for a variety of industrial applications.
With a maximum operating pressure of up to 25MPa (3,630 psi) and a flow rate capacity of 160L/min (42.3 gal/min), this pilot-operated directional valve is engineered to handle demanding environments while maintaining consistent performance.
- Specifications and Dimensions
- US Customs Harmonized Code: 8481.20.0020
- Country of Origin: Japan
- Weight: 16 lbs
- Max. operating pressure: 25MPa (3,630 psi)
- Max. flow rate: 160L/min (42.3 gal/min)
- Configuration: CETOP D05 solenoid directional 2-stage valve
- Type: Pilot Operated
- Key Features and Benefits
- Reliable two-stage pilot-operated design
- Handles high-pressure systems up to 25MPa
- Efficient fluid management with a flow rate up to 160L/min
- Compatible with CETOP D05 standards
