Description

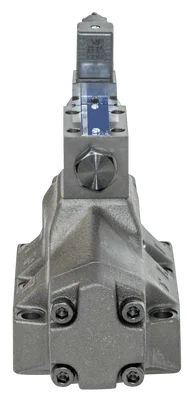

Yuken Directional Valve Pilot Operated (DSHG-06-2B2-T-D12-N-5390) is a high-performance 2-stage solenoid directional valve designed for precise hydraulic flow management. This valve is ideal for industrial systems that require stable and reliable flow control under high-pressure conditions.
With a maximum flow rate of up to 500L/min (132gal/min), this Yuken pilot-operated directional valve offers enhanced capacity for large-scale hydraulic applications. Weighing 26.23 lbs, it is easy to integrate into existing systems without compromising on performance.
- Specifications and Dimensions
- US Customs Harmonized Code: 8481.20.0020
- Country of Origin: Japan
- Weight: 26.23 lbs
- Type: CETOP D08 Solenoid Directional Valve
- Pressure Range: Max. operating pressure up to 31.5MPa (4,570psi)
- Flow Rate: Max. 500L/min (132gal/min)
- Key Features and Benefits
- High flow capacity up to 500L/min for large hydraulic systems
- Handles high pressures up to 31.5MPa (4,570psi)
- Compact design for easy integration into existing systems
- 2-stage construction ensures stable and precise flow management
